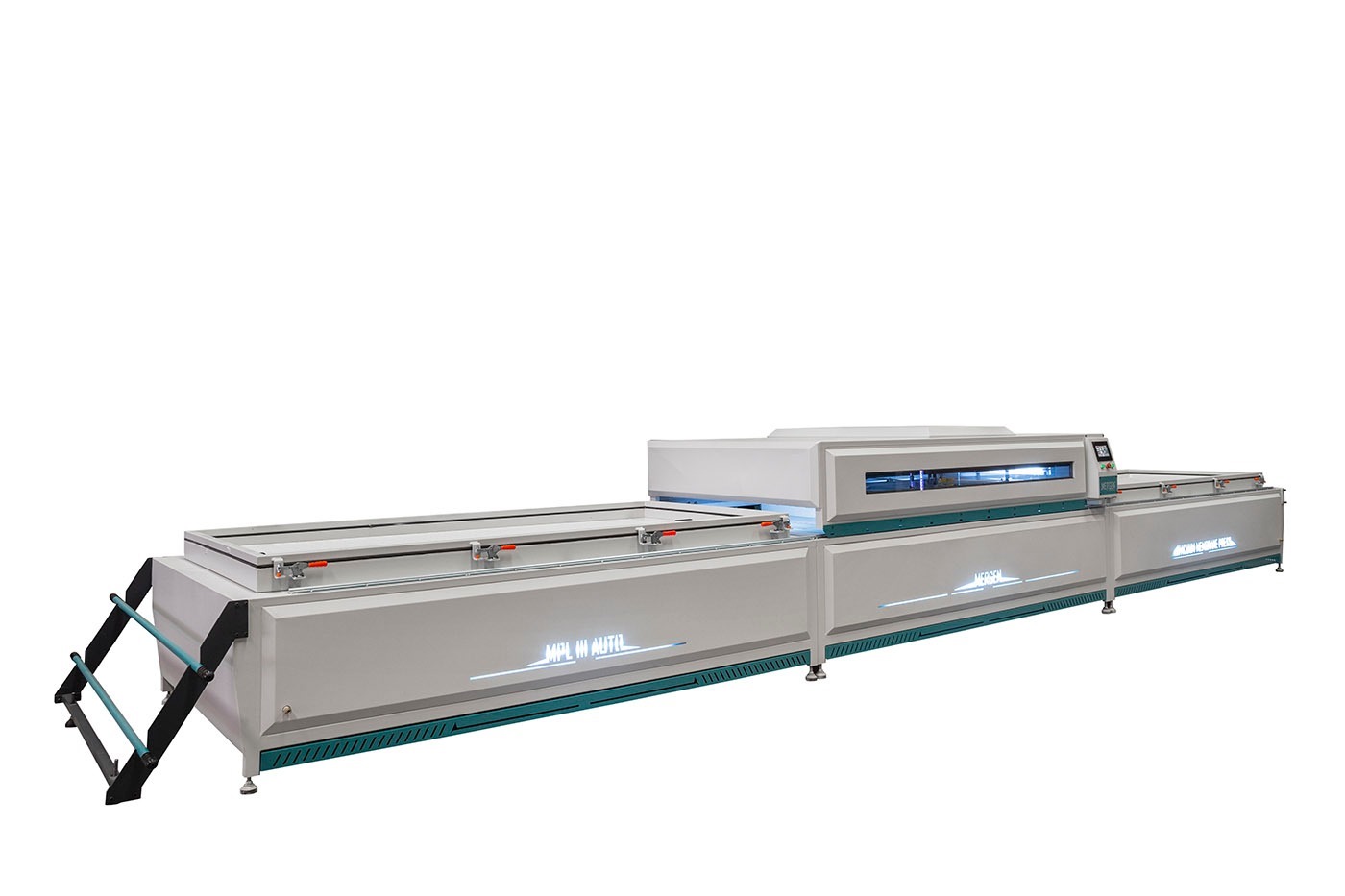

MPL.III.AUTO
Technical Specifications
| TABLE DIMENSIONS : 1400X3100 (D:65) / 1400X1200 (D:65) / 1400X2400 (D:65) |
| TABLE MATERIAL : METAL |

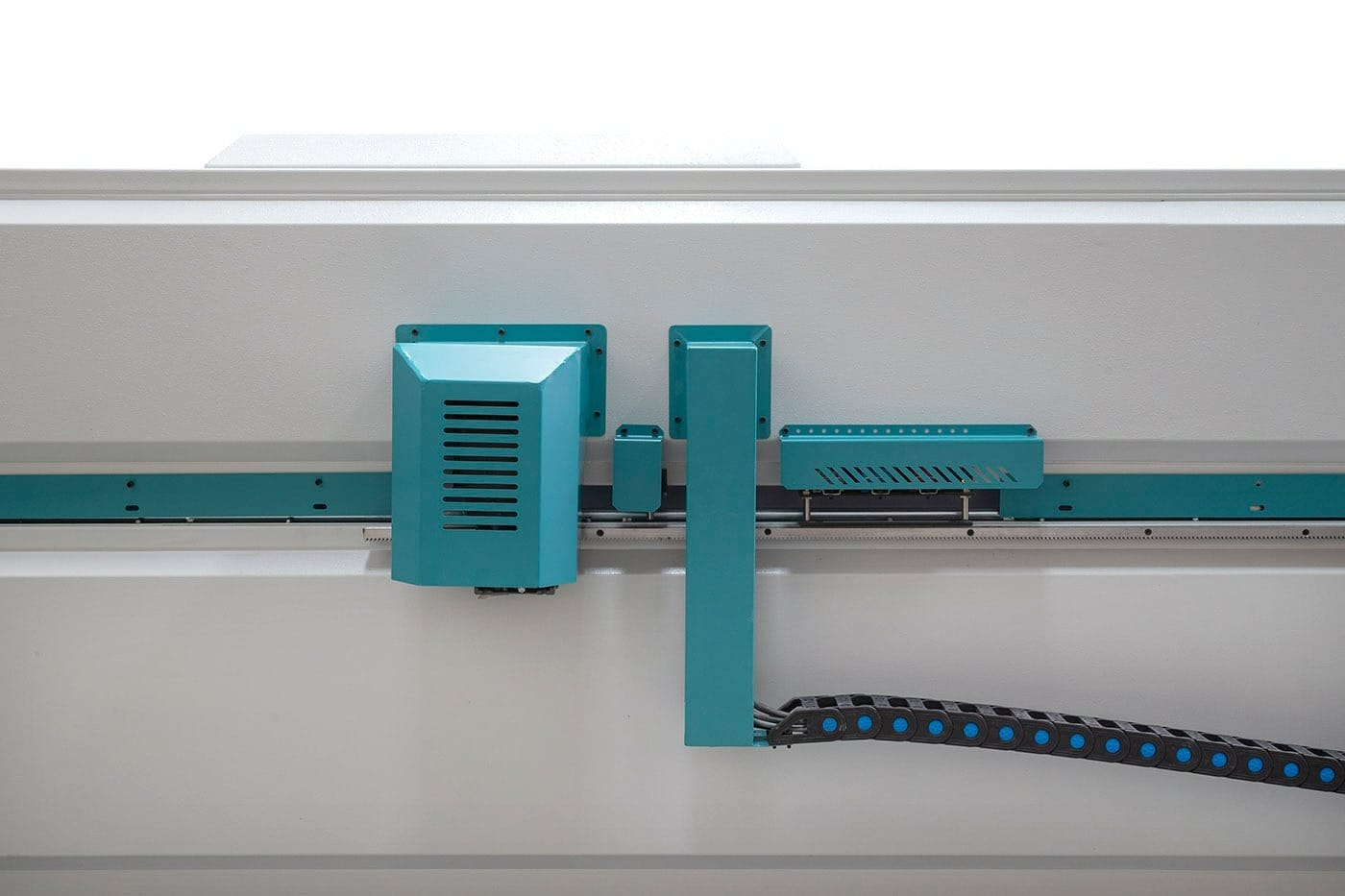

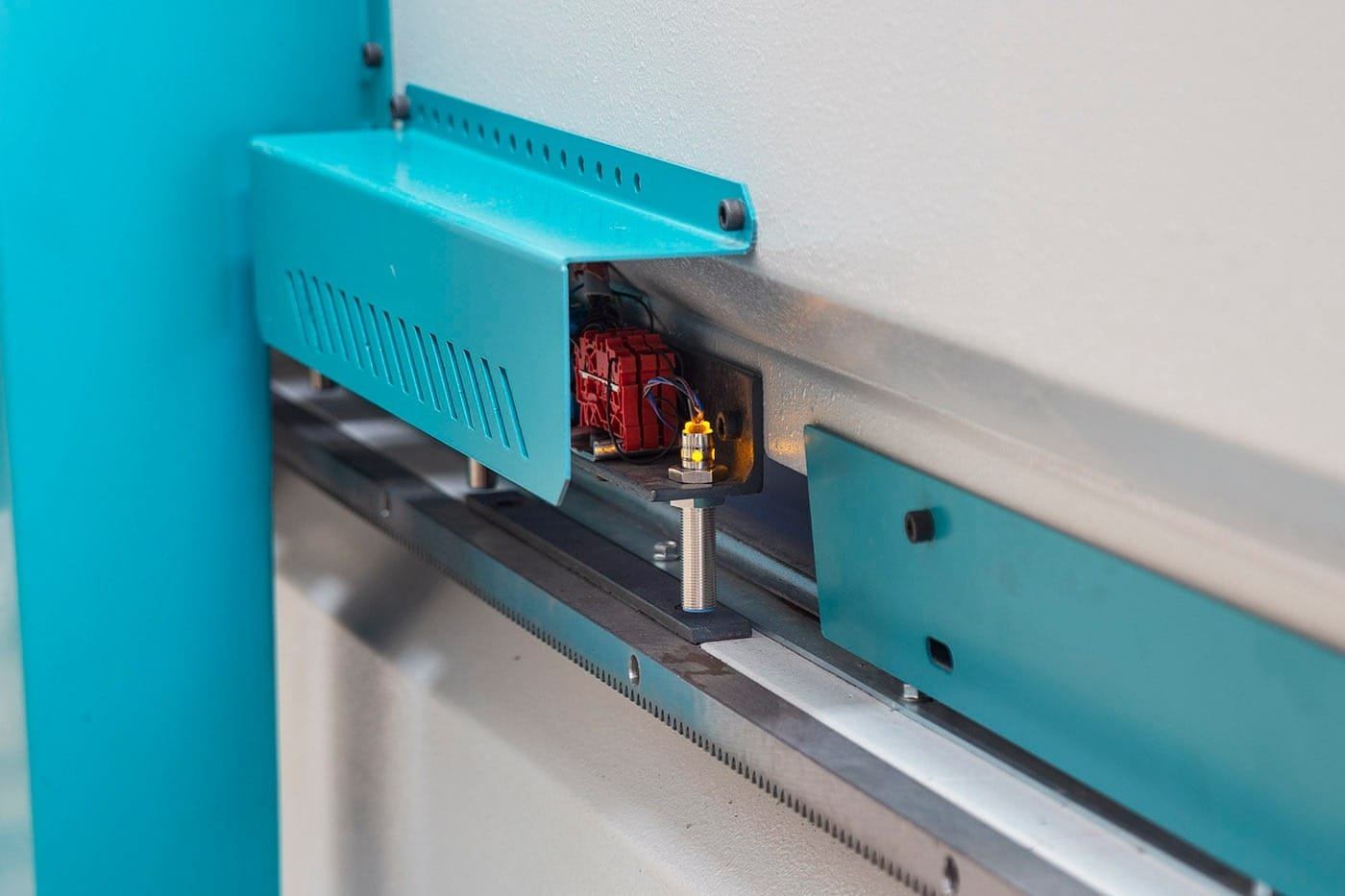

| GEAR SYSTEM : 20X20XMOD2 STANDARD RACK & PINIONRACK & PINIONRACK & PINION |
| VACUUM PUMP : 111 m3 /Hour OILED - VPS |
| VACUUM ON/OFF SYSTEM: 1'' ACTUATED VALVE |
| MOTION : 0.37 kW 1400 DD R:1/10 S:40 |

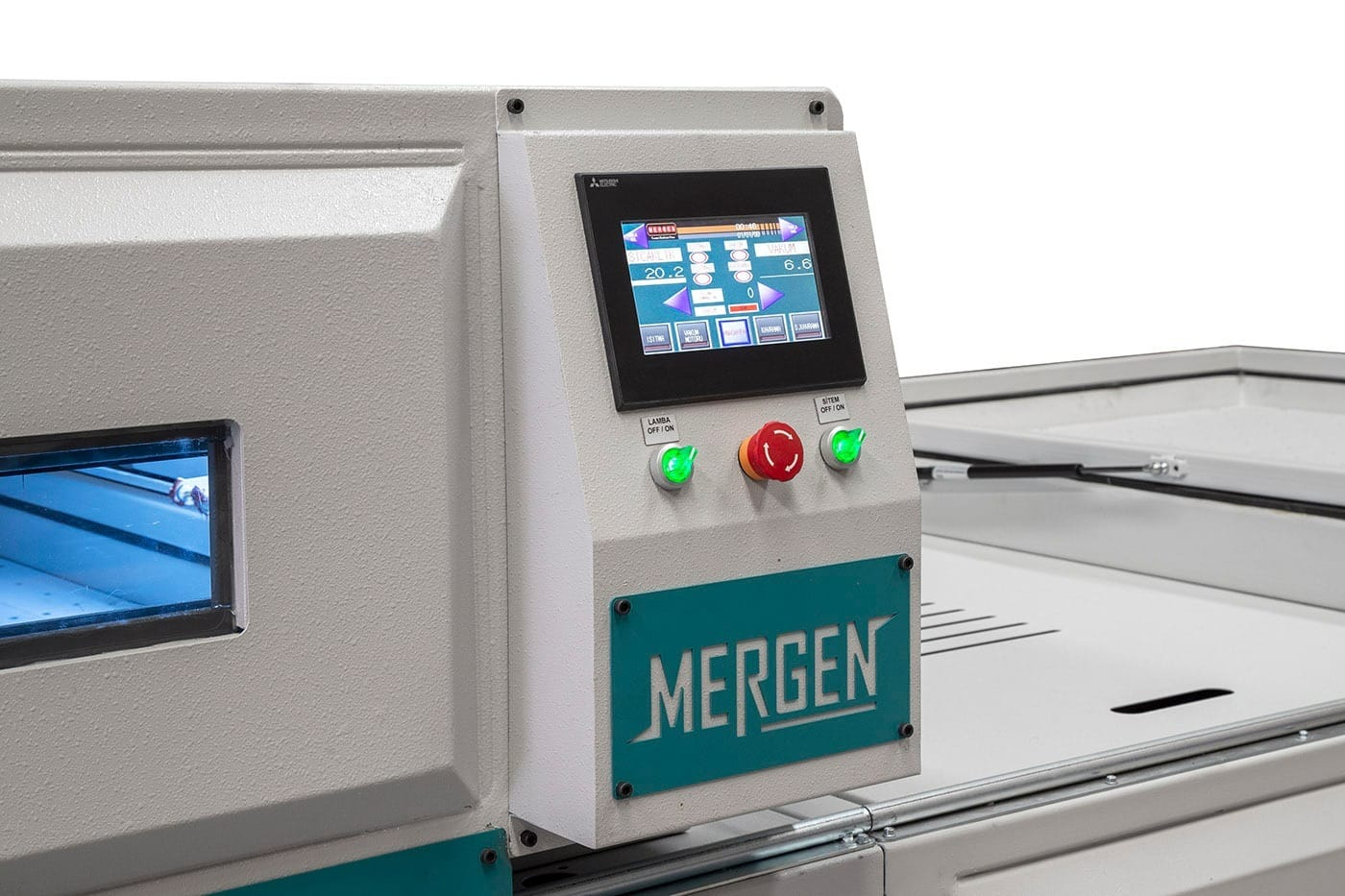

| OPERATOR CONTROL : DELTA 7'' TOUCH SCREEN |
| FAULT WARNING : AUDIBLE AND VISUAL |
| TEMPERATURE MEASUREMENT SYSTEM : INFRARED SENSOR |
| RESISTANCE : 620mm 190V 600W |
| TABLE SYSTEM : AUTOMATIC PISTON |
| MOLD SYSTEM : MANUAL MOVING MOLD SYSTEM |
| PLC & ELECTRONIC SYSTEMS : DELTA |
Machine Information
| INSTALLATION DIMENSIONS : E/1750 B/9500 Y/1750 |
| PACKAGING DIMENSIONS : E/2300 B/5800 H/2500 |
| ENERGY CONSUMPTION : 30 kW |
| AIR REQUIREMENT : 7 Bar |
| WEIGHT : 2000 Kg |
Advantages
- PLC Module and Prescription Use
- Fast Production with Automatic Table
- Failure Control System
- Oil Type Vacuum Pump
- Optional Cooling Fan
Characterıstıcs
MPL series is a high capacity Vacuum Press solution produced by Mergen.
Scope Of Applıcatıon
Pvc printing, PP printing, Thermoforming printing
Product Description

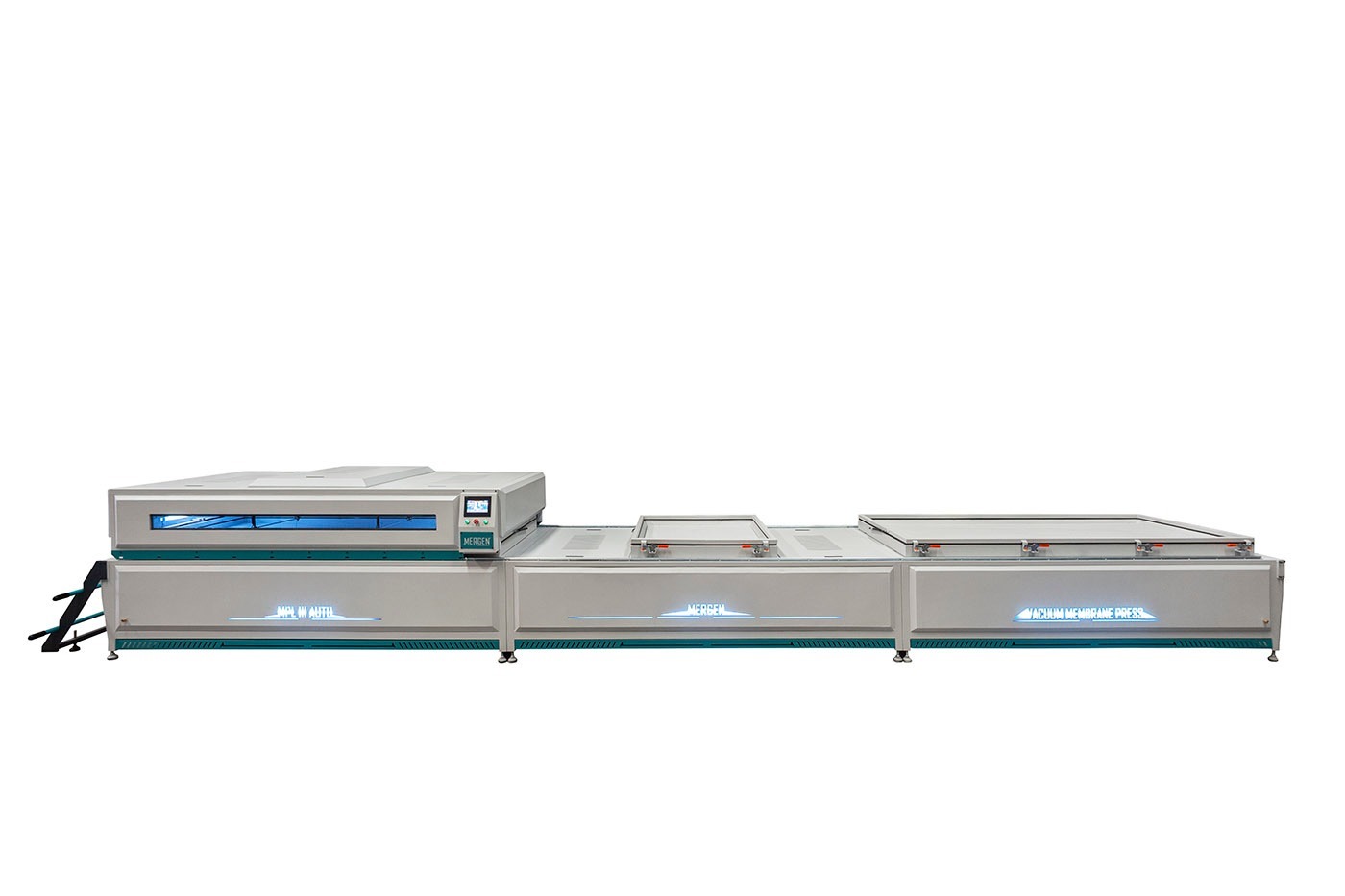

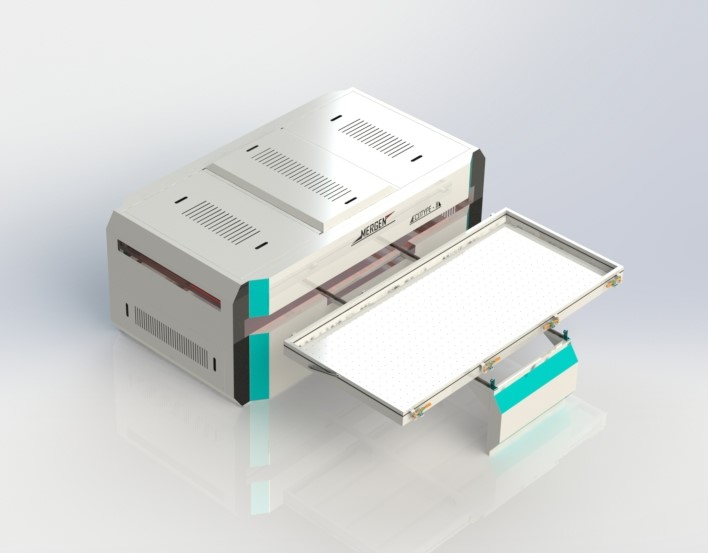

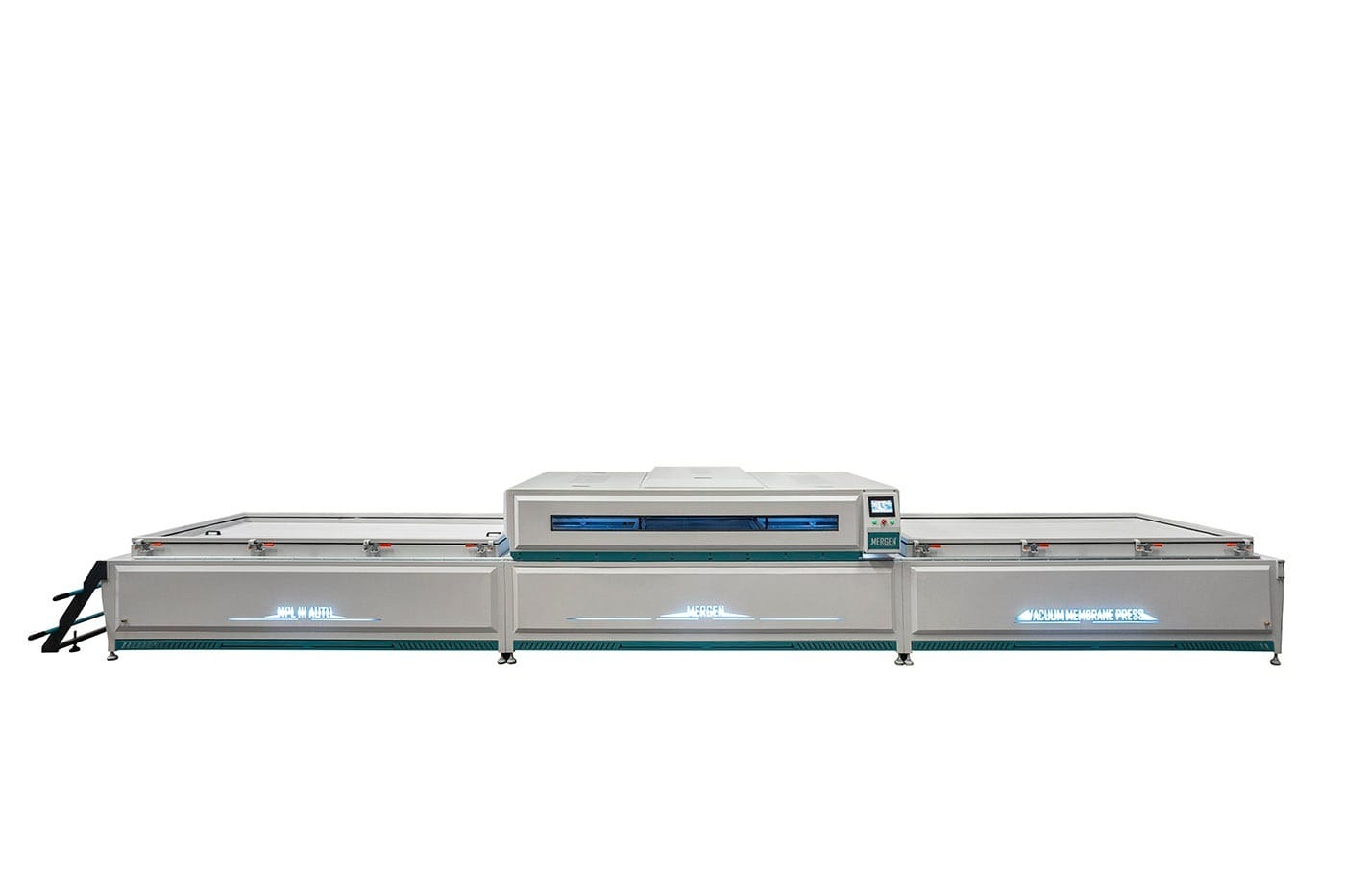

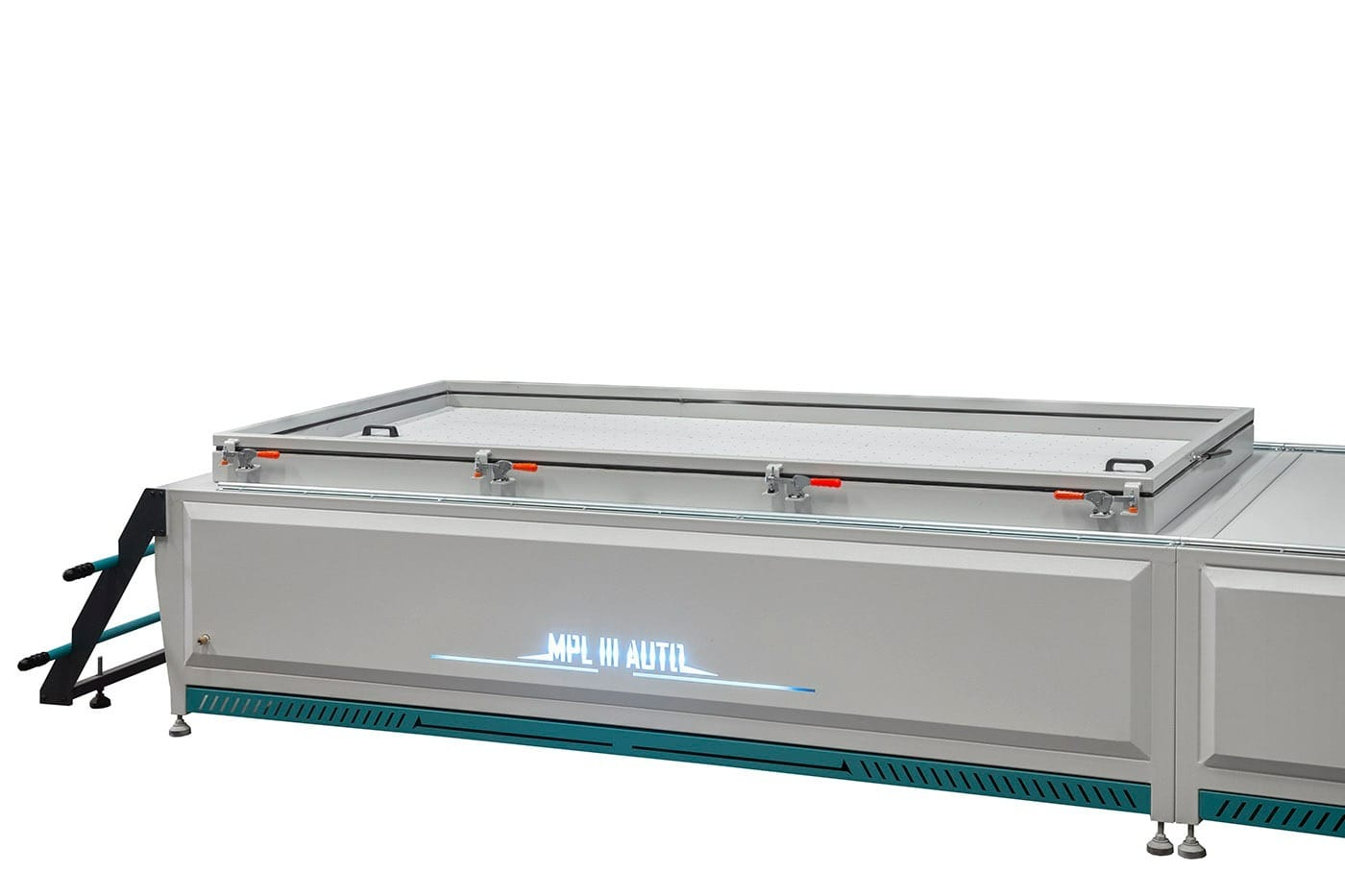

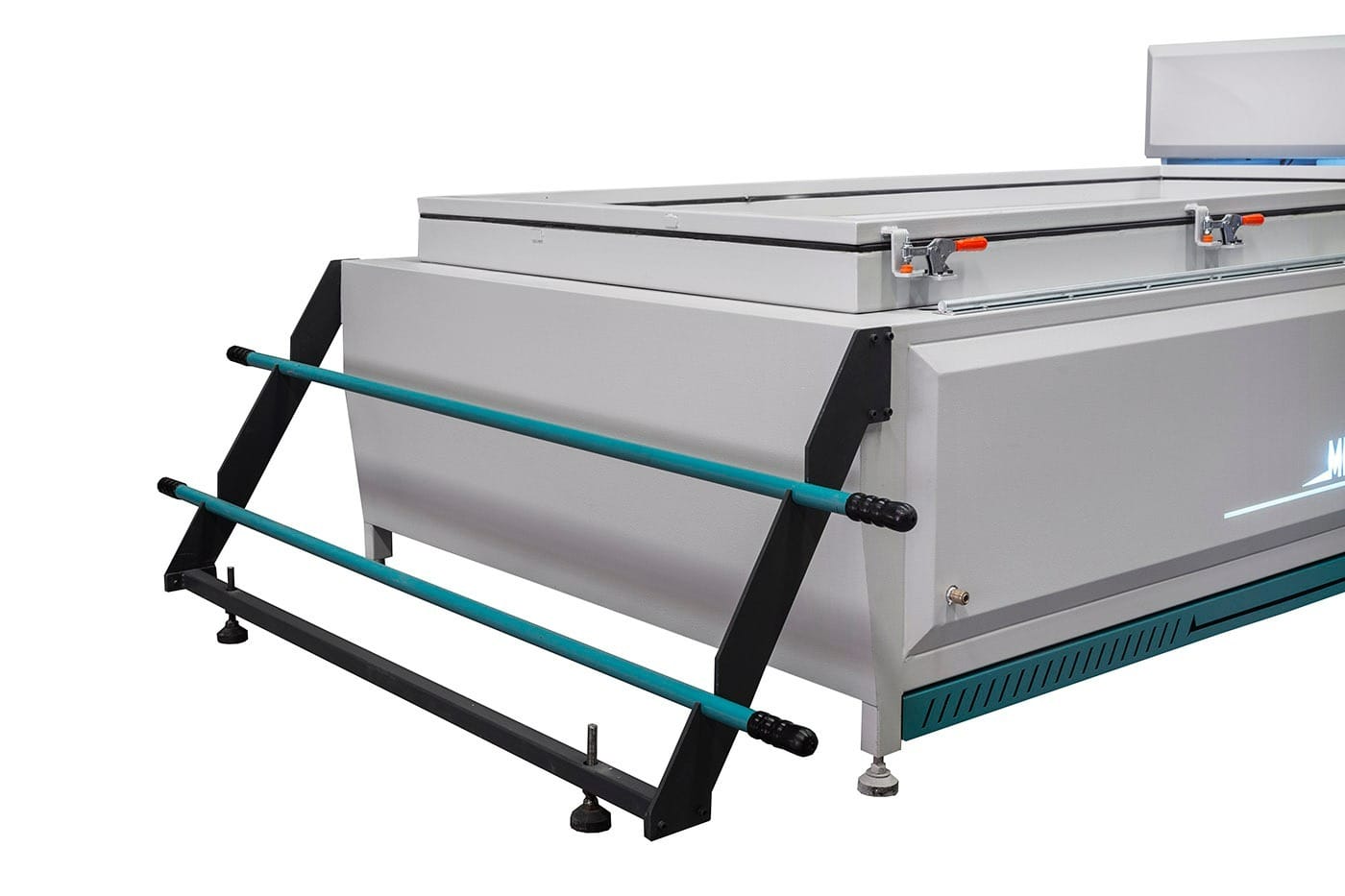

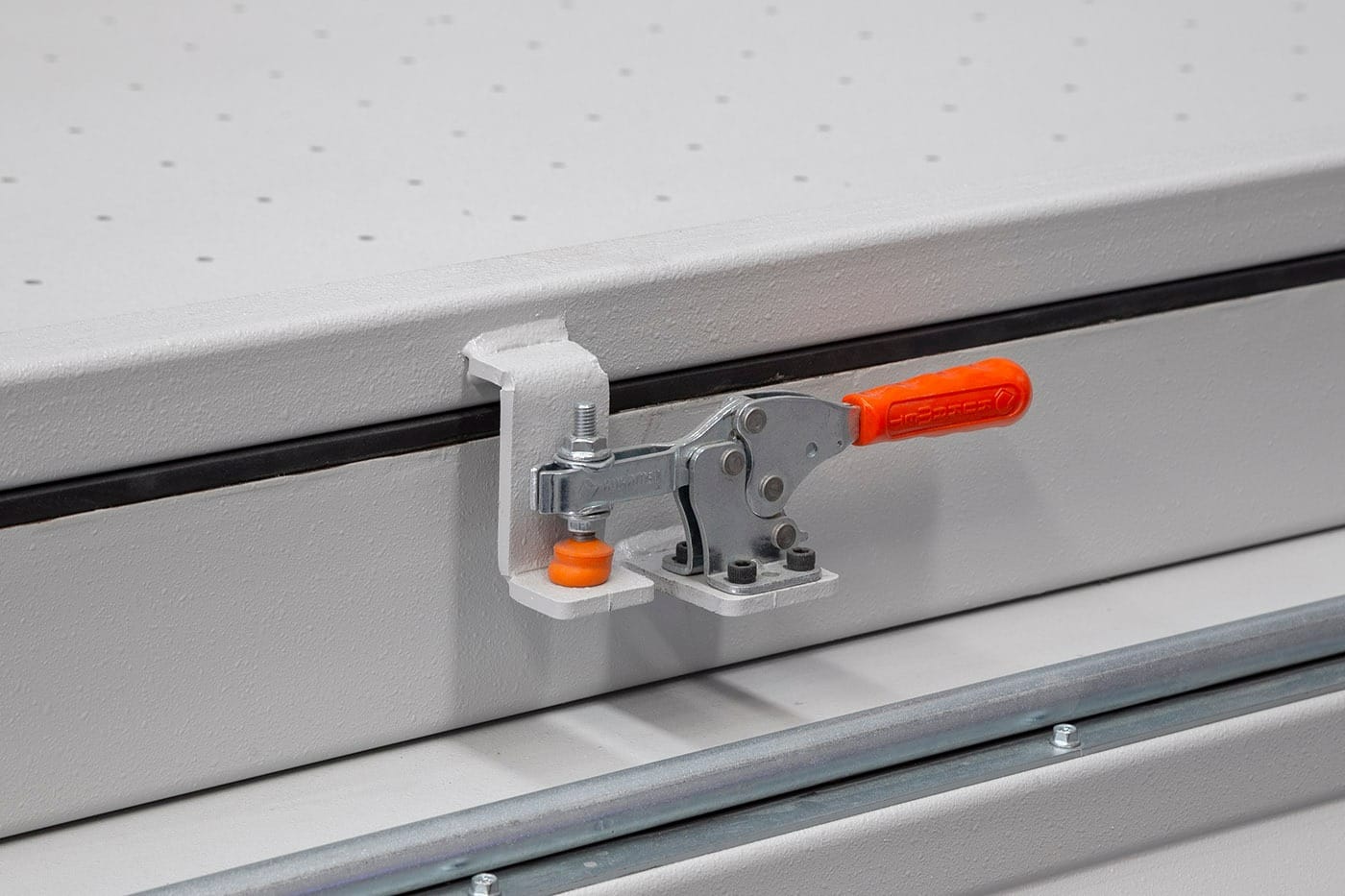

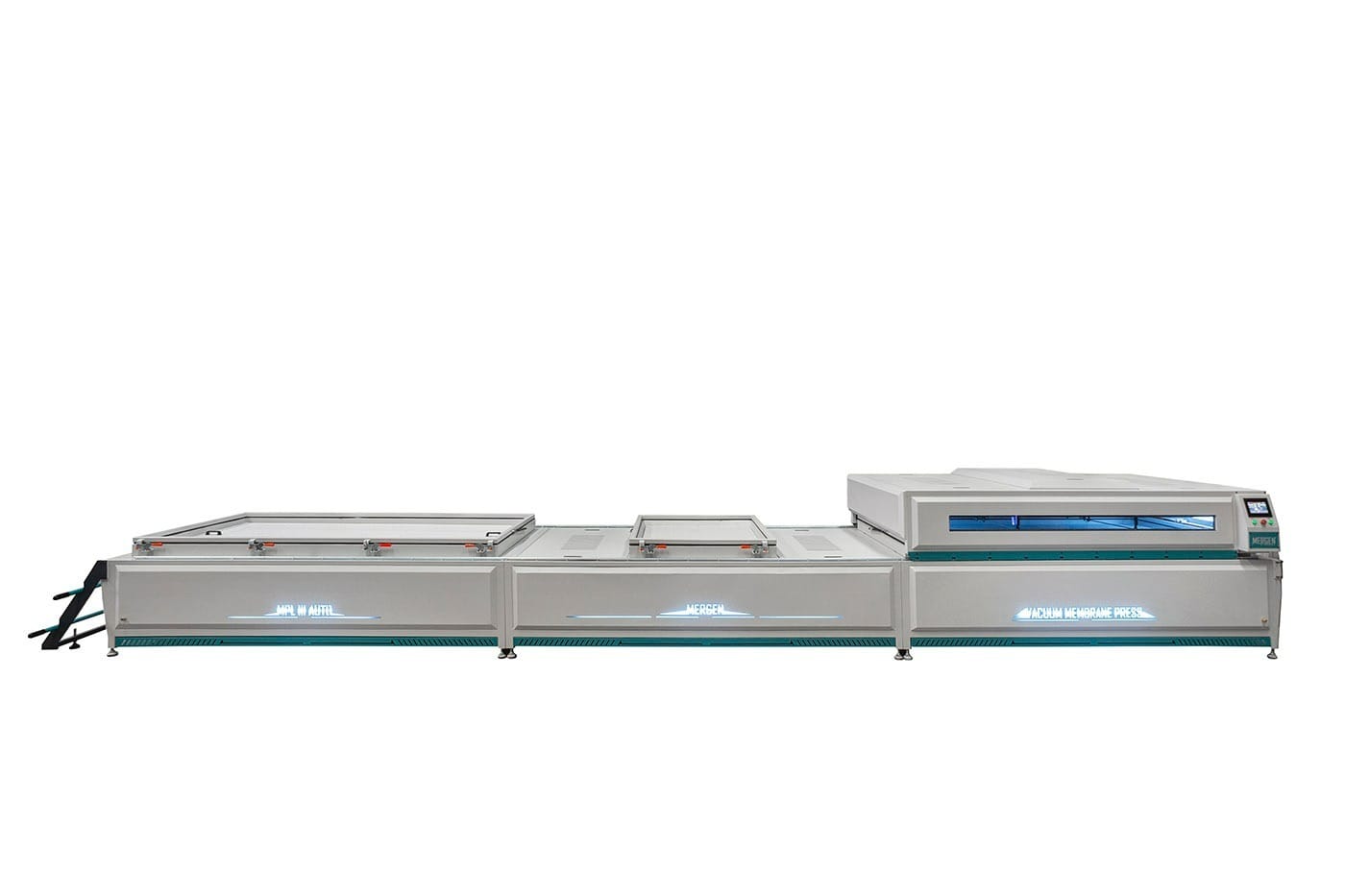

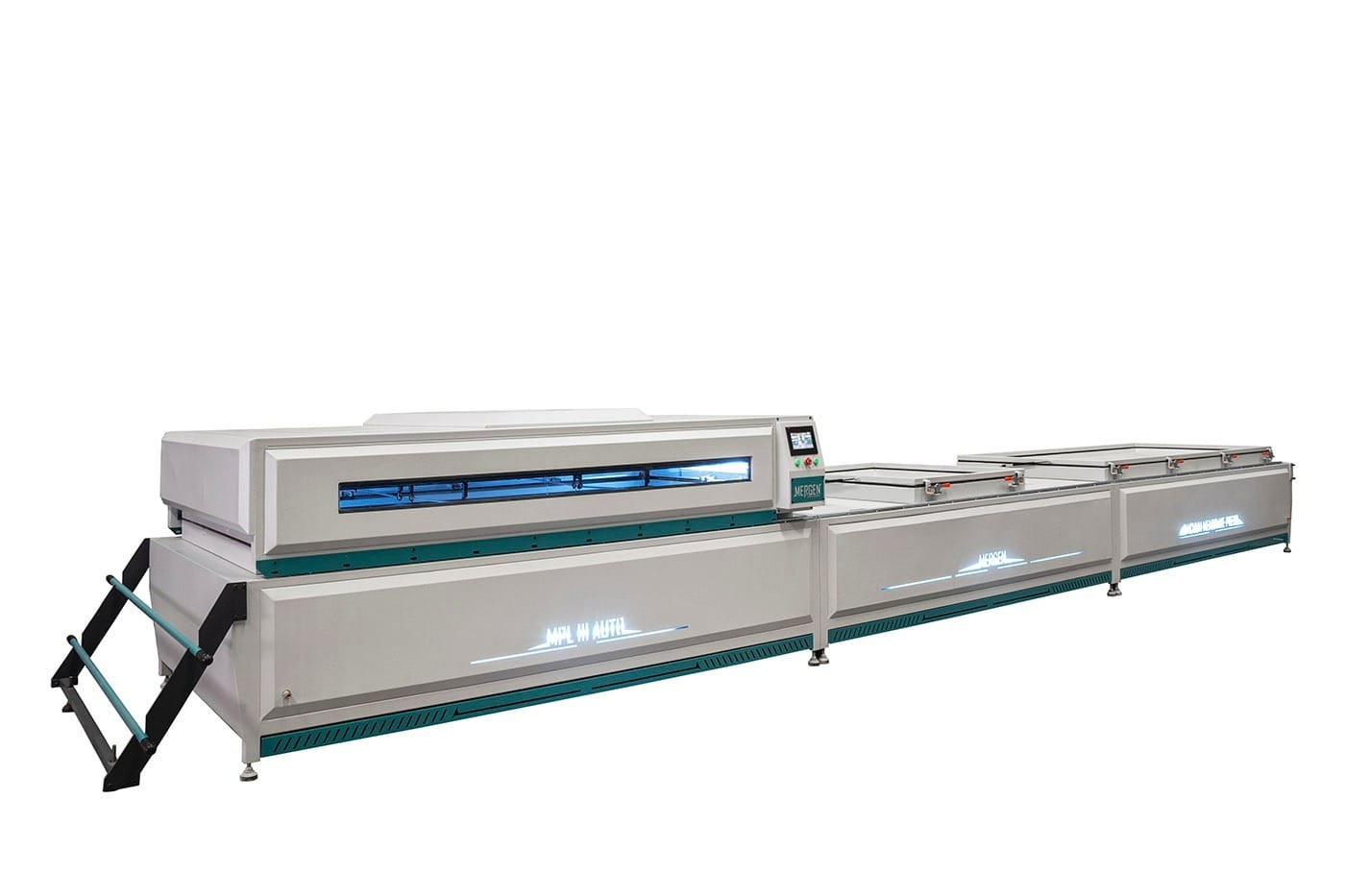

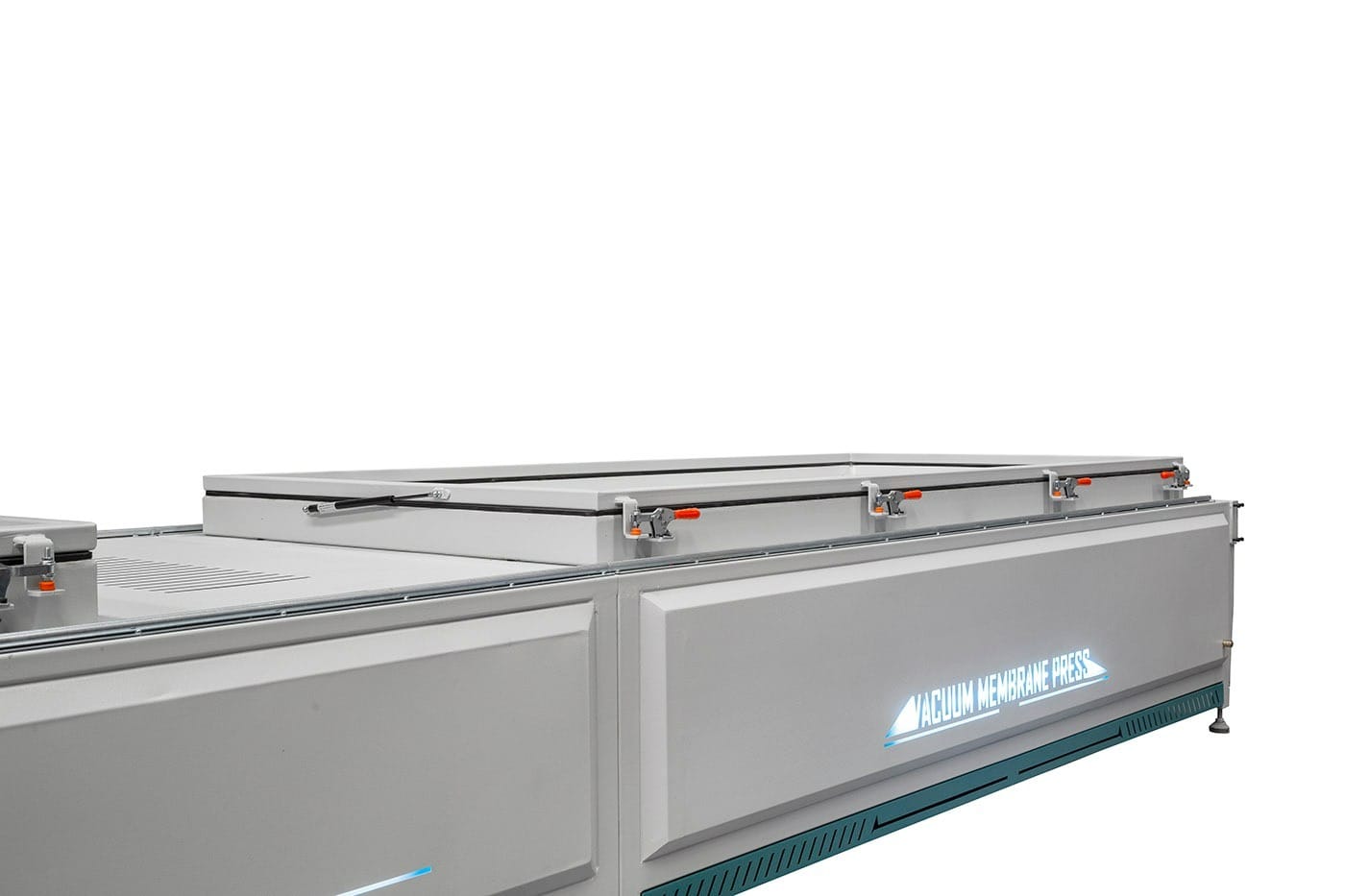

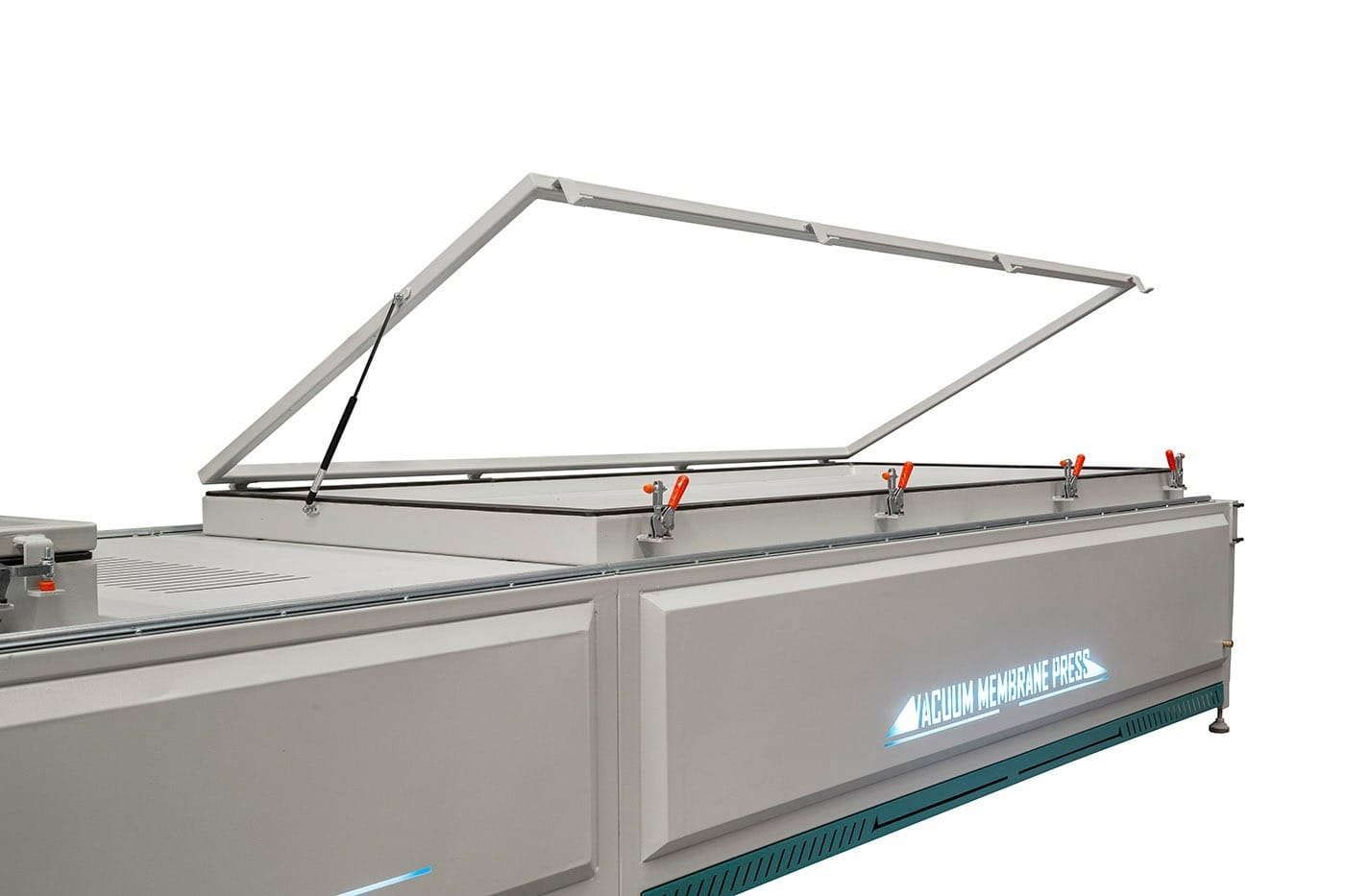

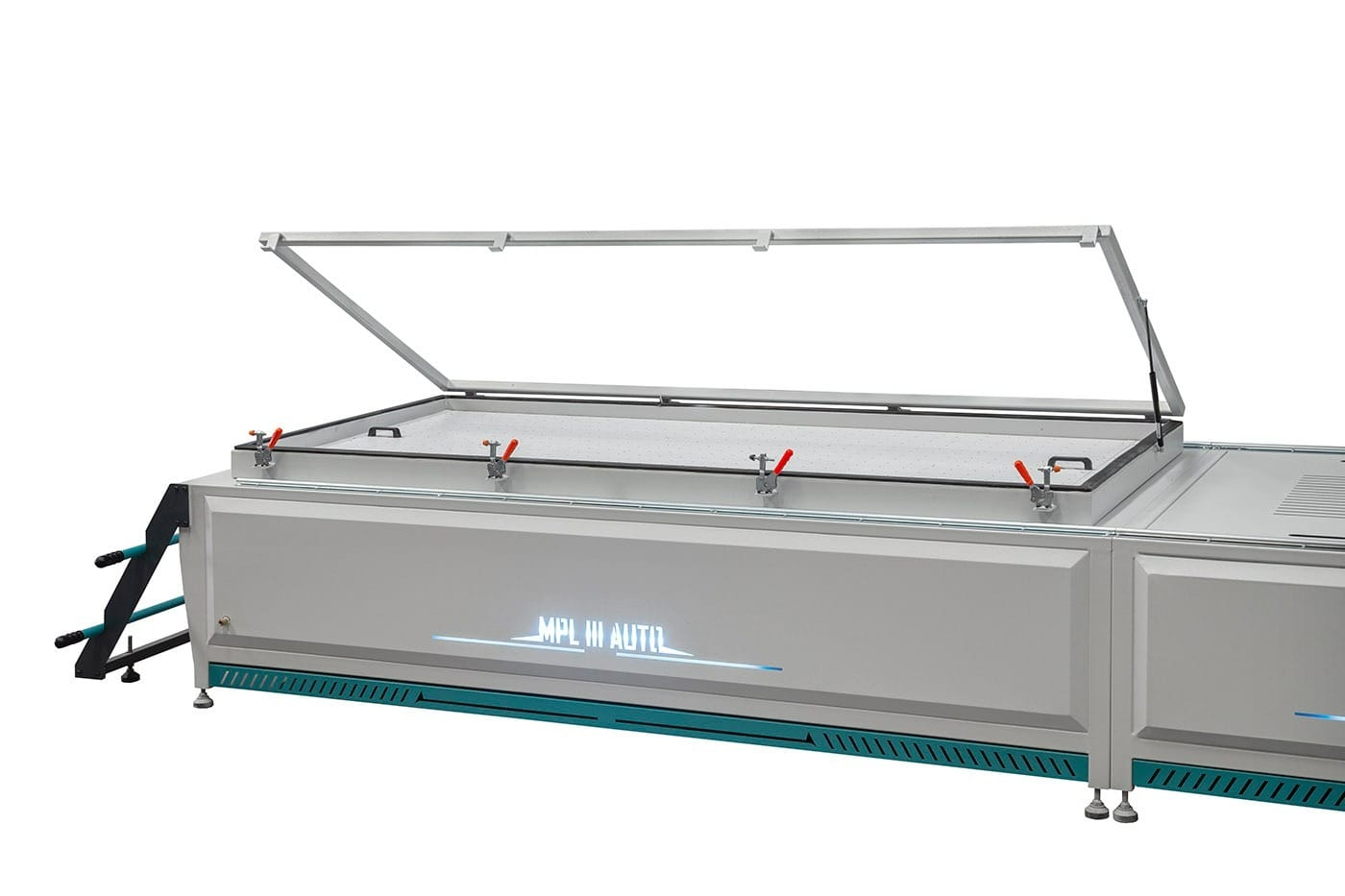

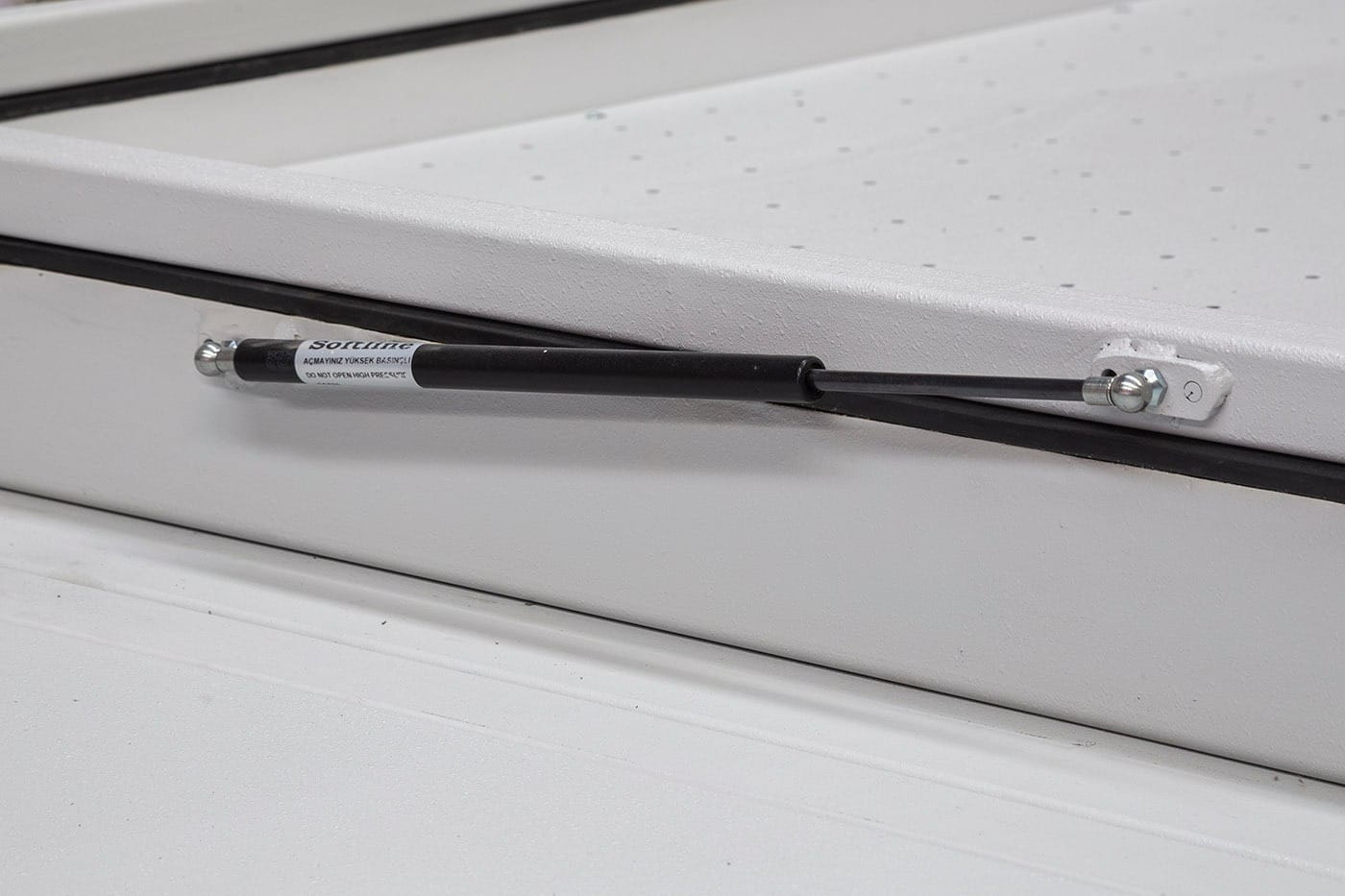

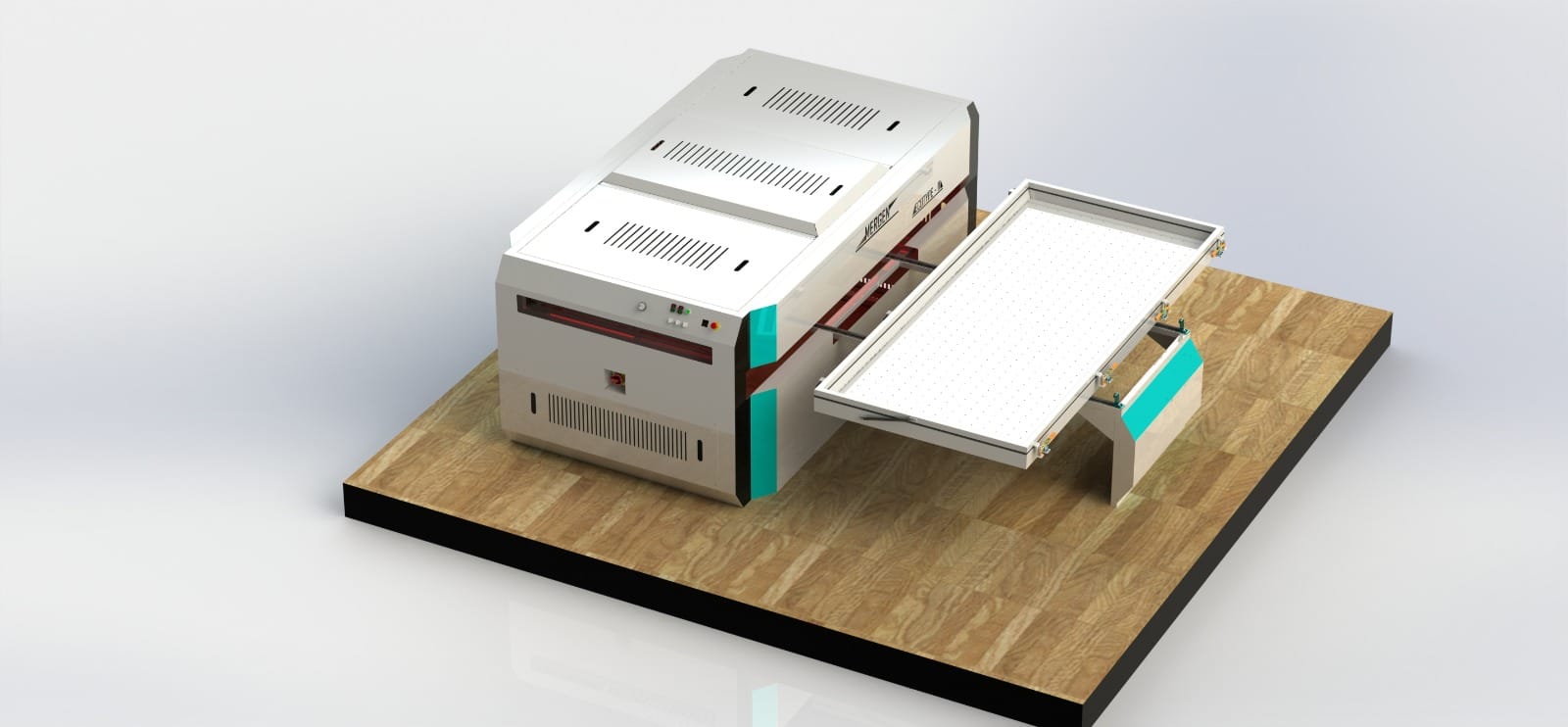

Product Images
