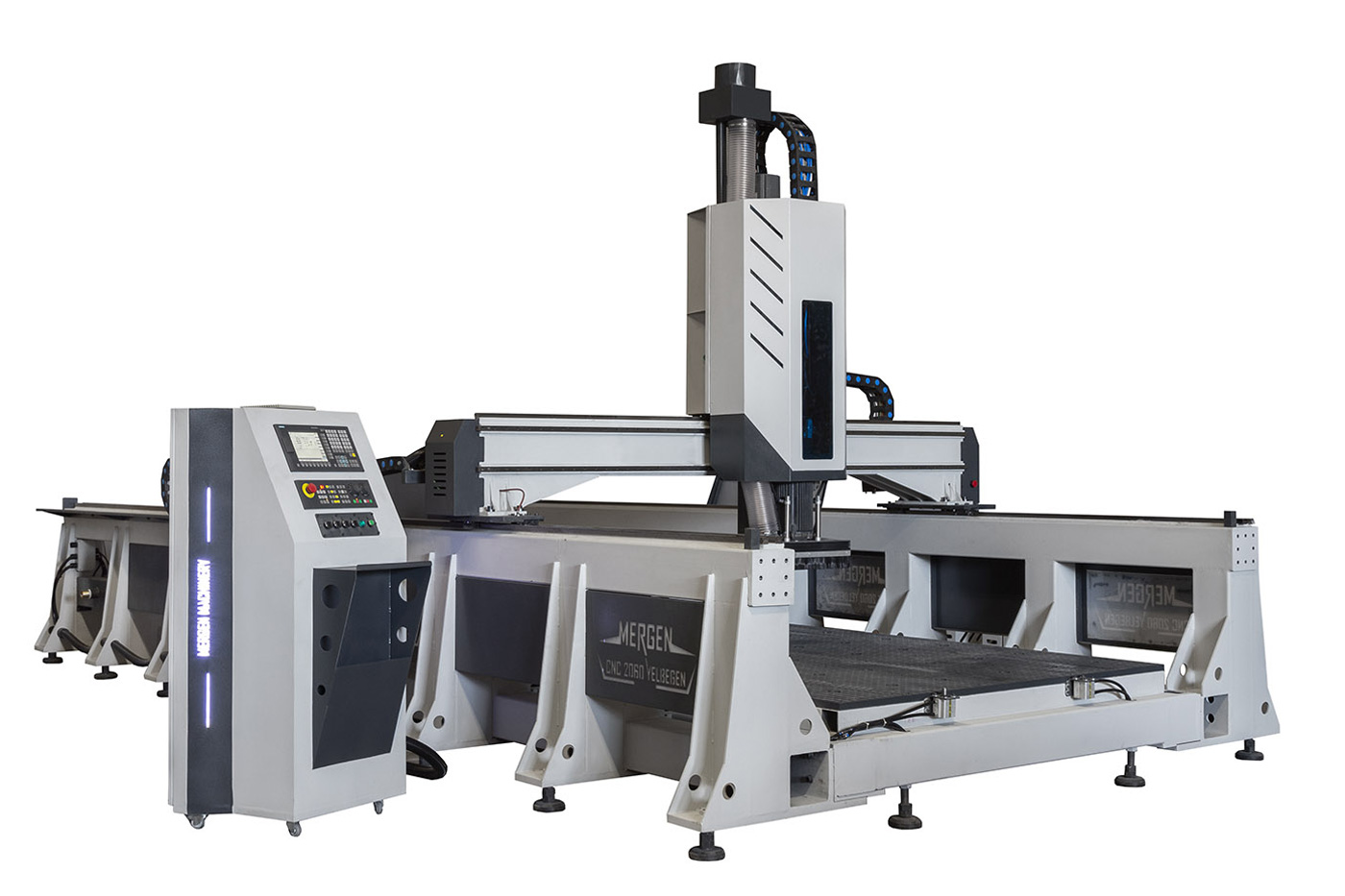

CNC 1520 YELBEGEN
Technical Specifications
| MACHINE TABLE= 1500 X 2000 Z:800 |
| RAILS AND CARS = Y35 X-Z 25 |
| GEAR SYSTEM = 25x25 MOD2 |
| BALL SCREW = 32x05 |
| SQUARE SYSTEM = AUTOMATIC |
| VACUUM SYSTEM = AUTOMATIC |
| VACUUM PUMP = 308m³/h |
| LUBRICATION SYSTEM = AUTOMATIC |
| REDUCERS= 120 BODY |
| TOOL CHANGE = 6 PIECES |
| TOOL HOLDER = 6 PCS |
| PROCESSING ENGINE= 12.5 kW 18.000 DD |
| CONTROL UNIT = 808D |
| SERVO MOTORS = X 1.5 Z 1.5 Y 1.5x2 kW |
| MACHINE WEIGHT= 5800 kg |
| MACHINE SPEED = 50 m/min |
| MACHINE PRECISION = 0.1 mm |
| WORKING PRESSURE = 8 BAR |
| ELECTRICITY CONSUMPTION = 30 kW |
| DUST COLLECTION MACHINE = 3500 m³/h |
| COMPACT= SEYKOC |
| WIDE TYPE G3 BACKLASHRAITO= STAF |
| HEISEL HARD GROUND= BRL |
| SPRING COUPLING = GTEN |
| 50x30 PNEUMATIC= PEMAKS |
| 5 ZONE = TORQUE |
| OIL TYPE = INTER |
| 17 POINTS= KEYLUBE |
| 1/10= LIMING |
| TABLE BACK= AREL |
| ISO30 ER32= CVS |
| AREL = AREL |
| INDUSTRIAL = SIEMENS |
| HIGH RESOLUTION = SIEMENS |
Characteristics
Yelbegen is a designed my Mergen to work models and special products. This machine have 1000 mm Z axis movement and user can work high height parts with this machine.
Yelbegen have 12.5 kW spindle motor and optional tool cooling unit to work aluminium parts. BT40 12.5 kW spindle motor is designed to work hard materials like aluminum. Vacuum table is optional on this machine because of model working process is not require vacuum. Yelbegen have T slots to hold the parts on its table.
