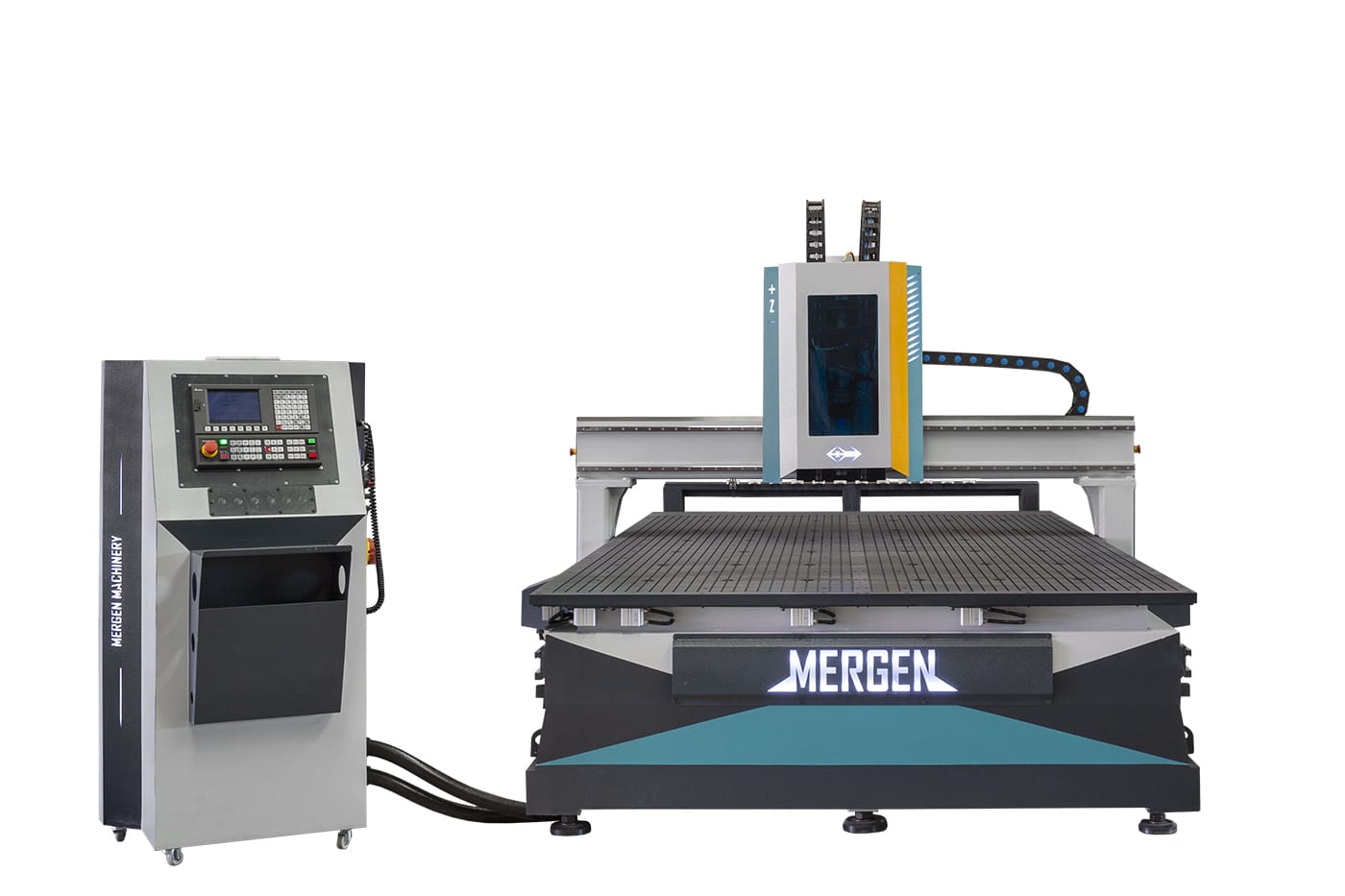

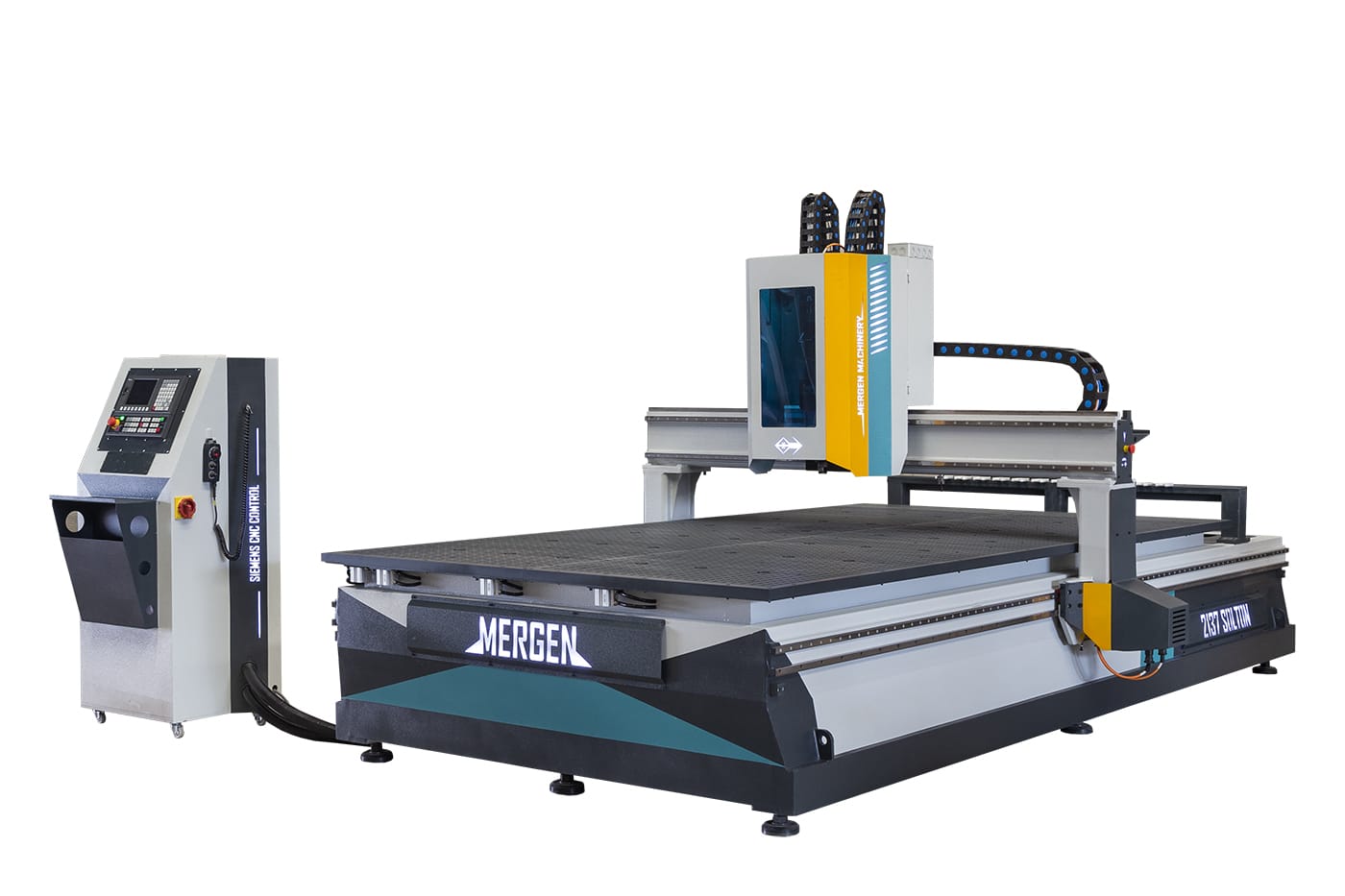

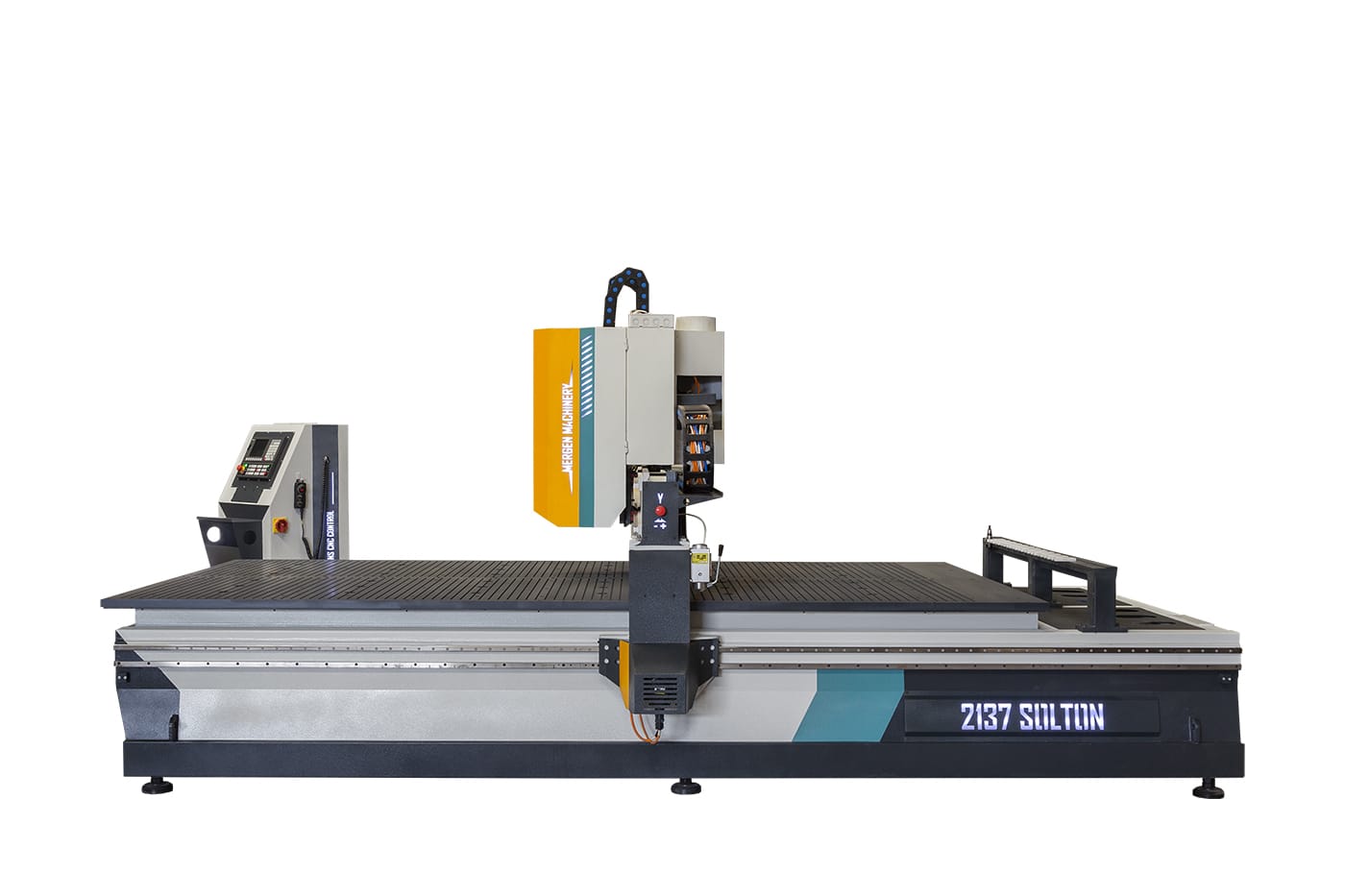

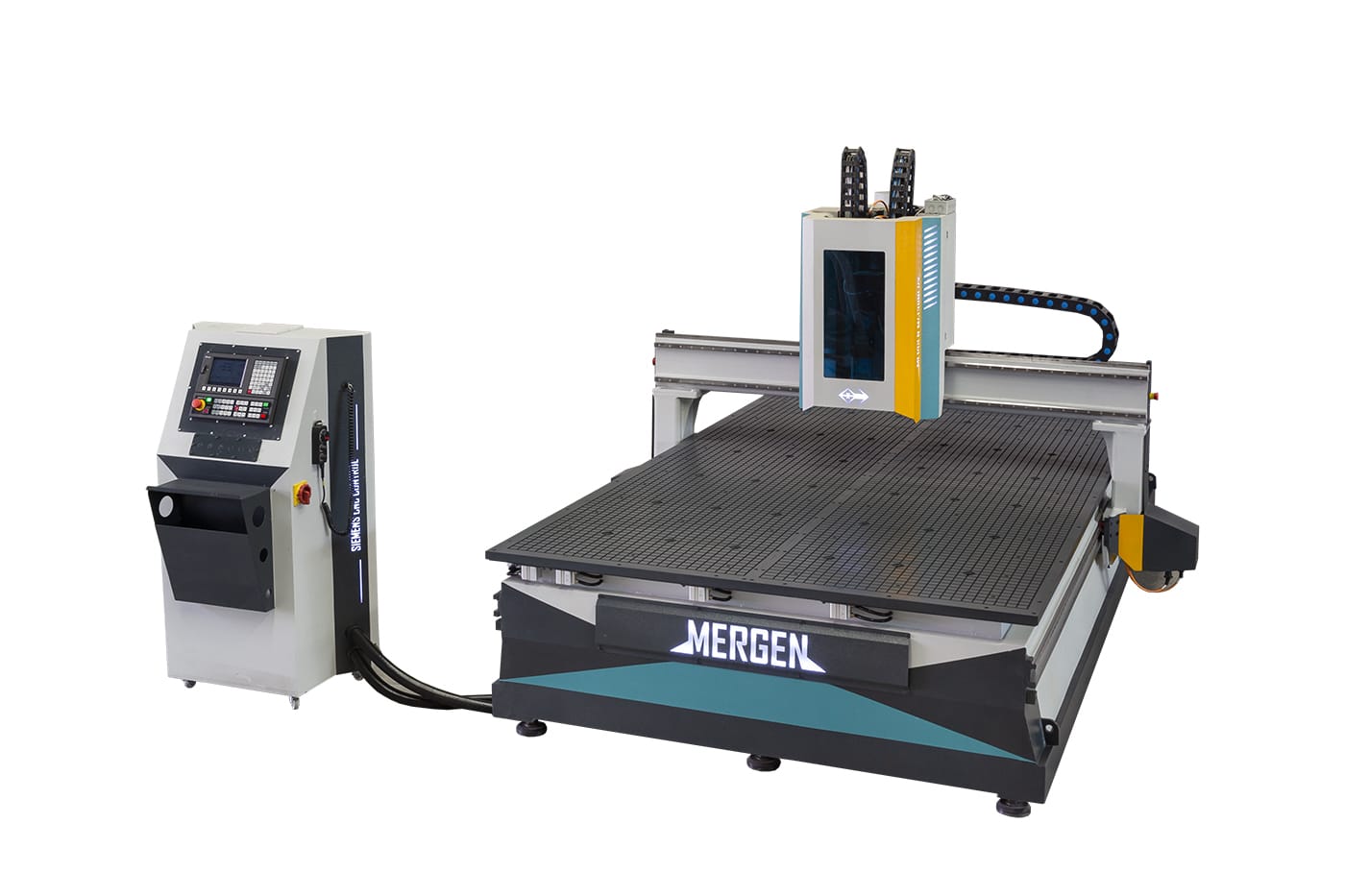

2137 SOLTON
Technical Specifications
| TABLE DIMENSIONS : 2100 X 3660 Z:300 |
| TABLE MATERIAL : COMPACT / GENTAŞ |

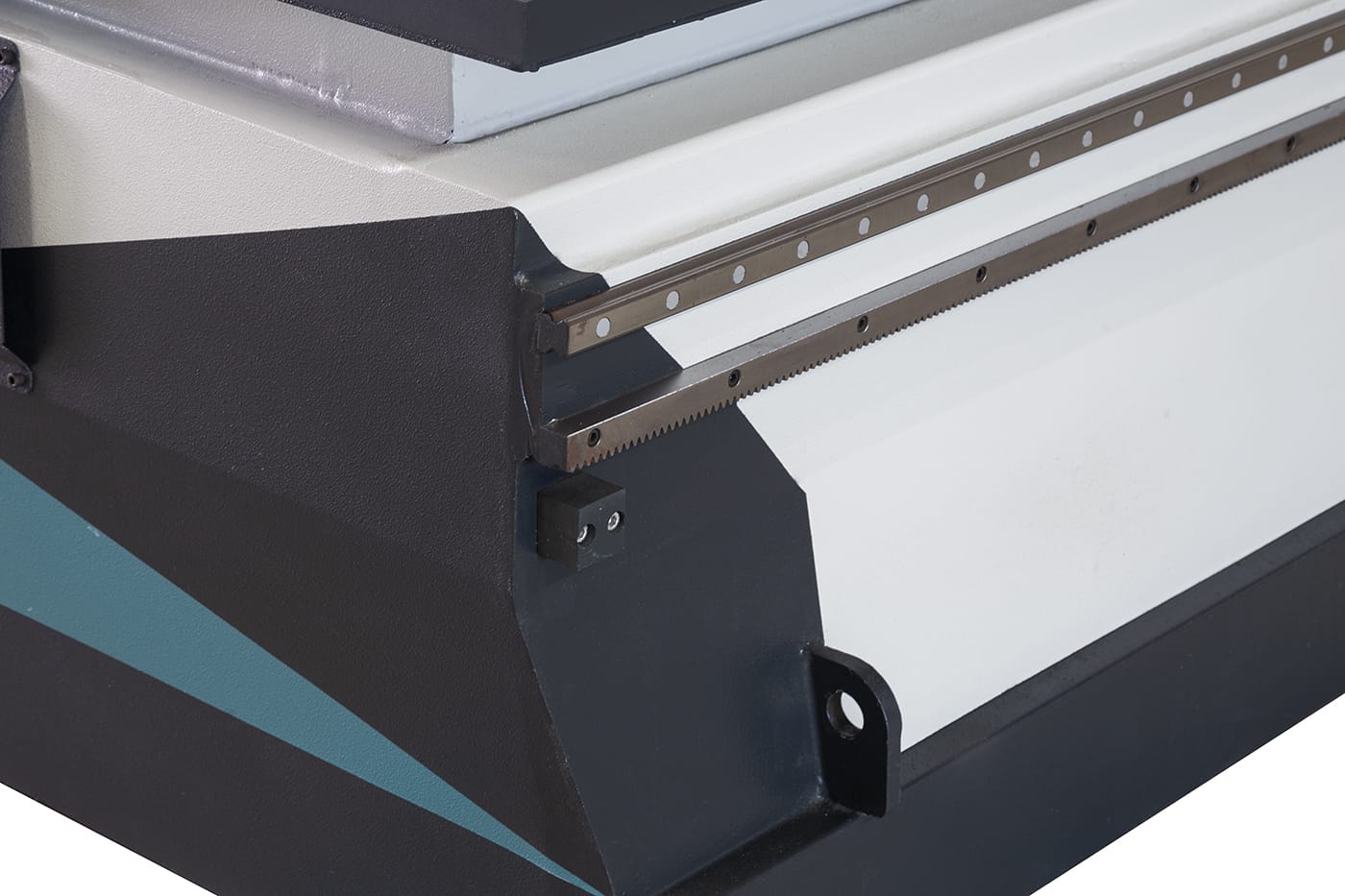

| RACK&PINION SYSTEM : 25X25XMOD2 HEL., HARD., GRINDED / BRL |
| GUIDE & BEARING : Y 35 X 25 Z 25 / BRL |
| COUPLING : STANDARD TYPE / BRL |
| SCREW : 32X05 / BRL |
| MITER SYSTEM : AUTOMATIC / EXPFLEX |

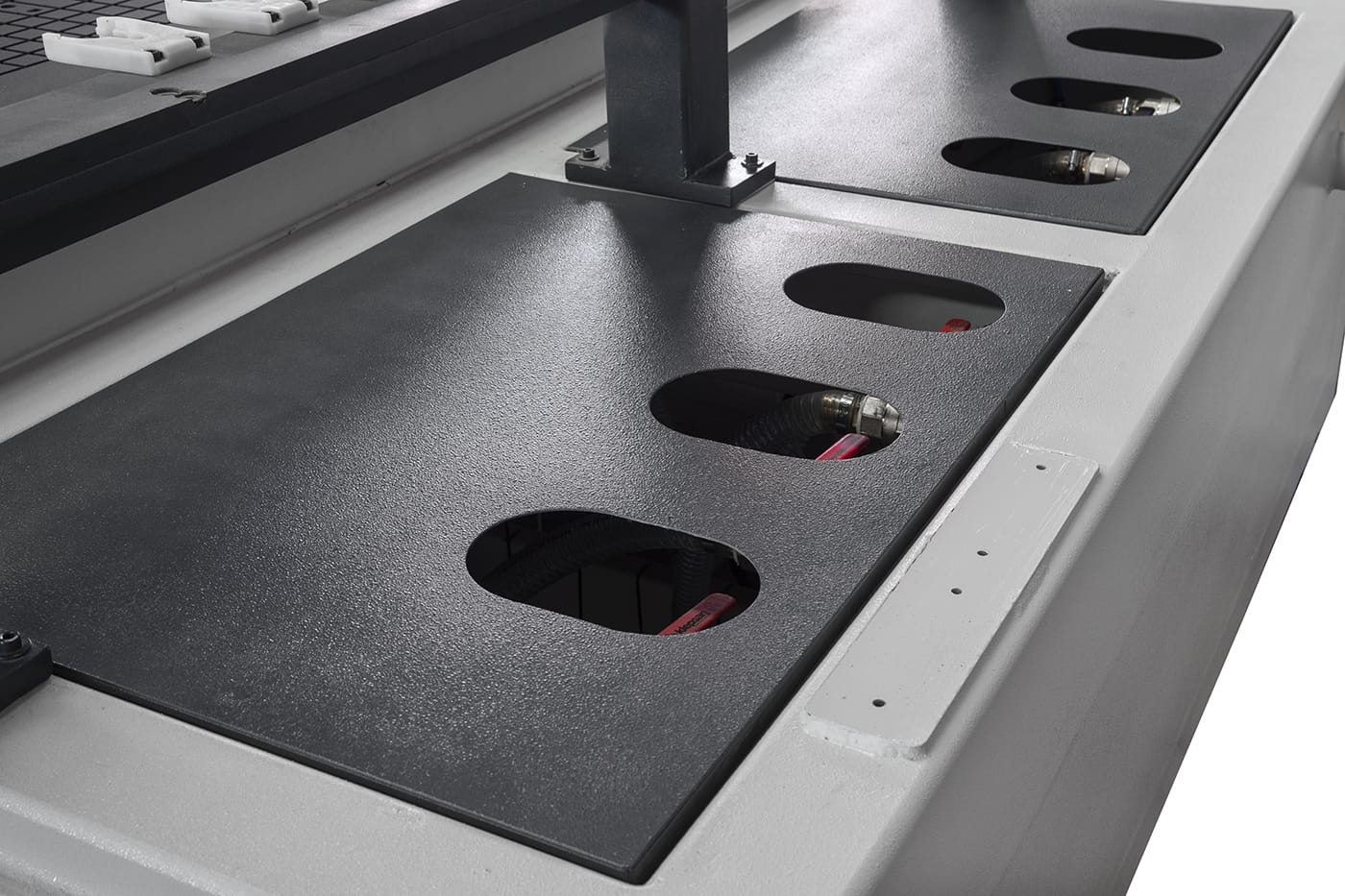

| VACUUM SECTIONS : 5 SECTION – MANUEL / HIMMEL |
| VACUUM PUMP : 7.5 kW 500 m3 /Hour DRY PUMP - GEV |

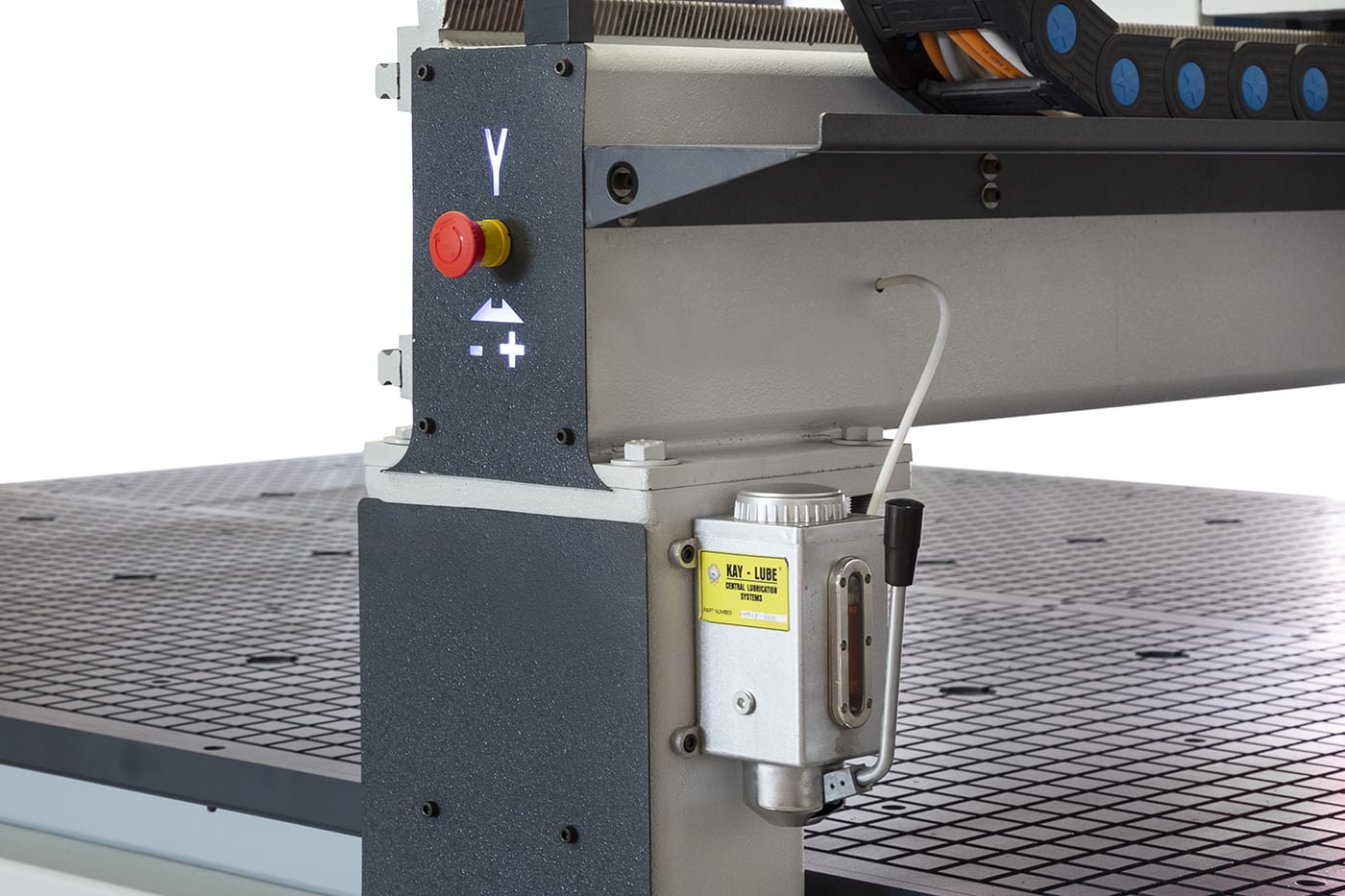

| LUBRICATION SYSTEM : MANUEL 17 POINTS / KEYLUBE |
| REDUCERS = FE120 R:1/10 / LIMING |

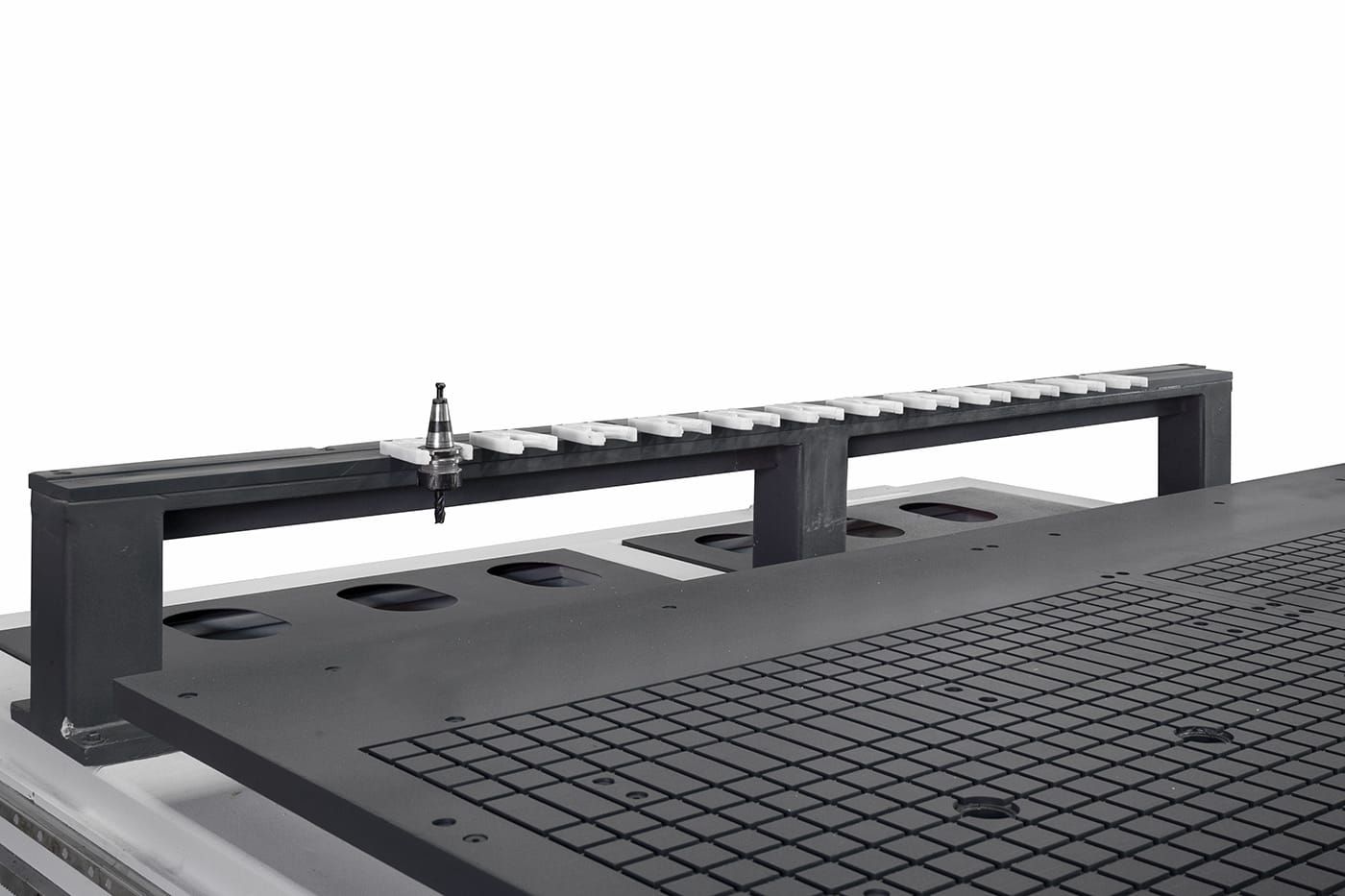

| TOOL CHANGER : AUTOMATIC / 14 / BEHIND TABLE / 4 HOLDER |
| SPINDLE MOTOR : 9.5 kW 24.000 RPM / CS |

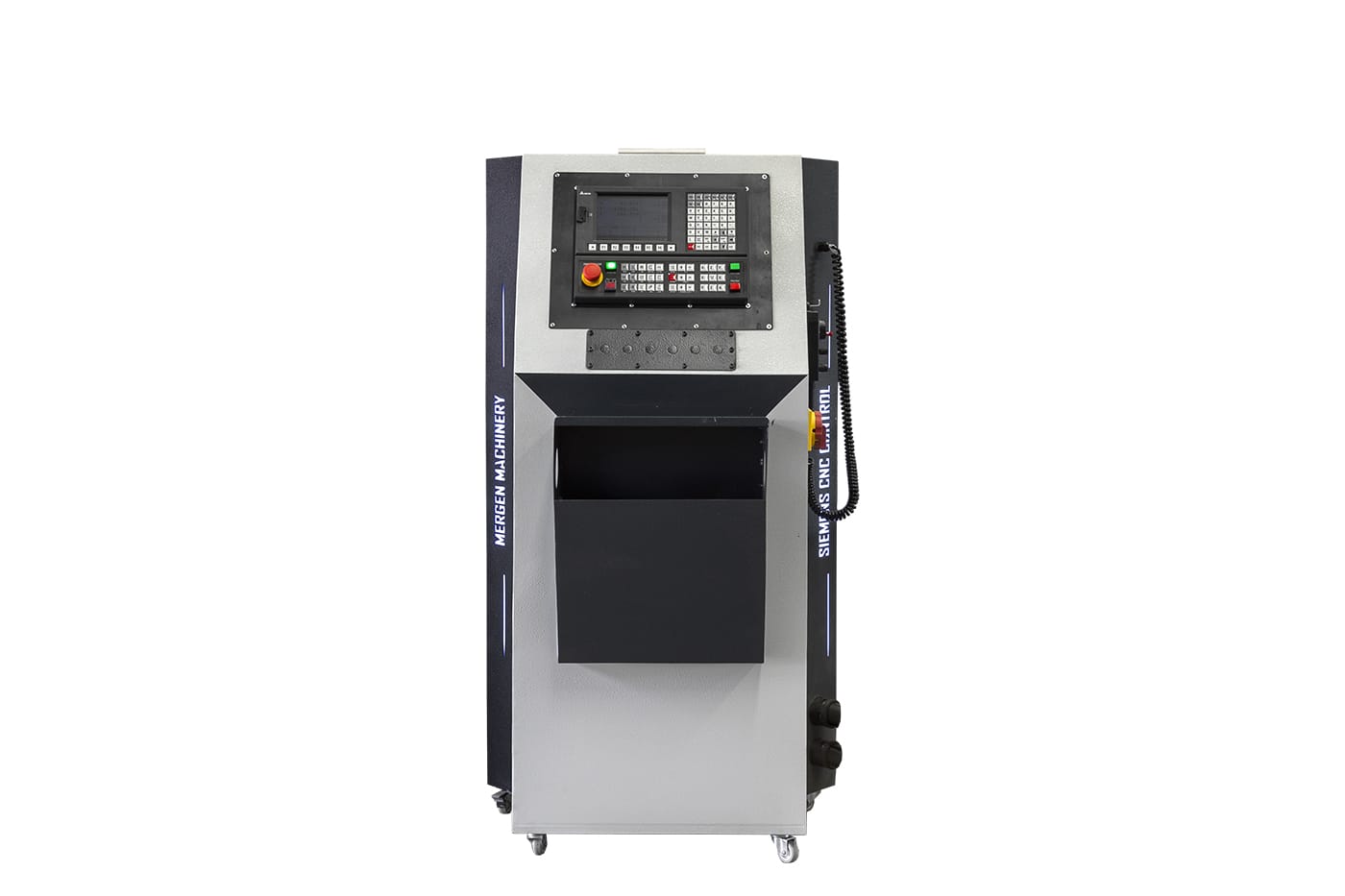

| CNC CONTROL UNIT : MERGEN TECH PC BASE |
| SERVO MOTORS : 1.5 kW 2000 RPM / DELTA |
Machine Information
| INSTALLATION DIMENSIONS : W/3000 L/6000 H/2300 |
| PACKAGE DIMENSIONS : W/2200 L/6000 H/2300 |
| ENERGY CONSUMPTION : 25 kW |
| AIR REQUIREMENTS : 7 Bar |
| WEIGTH : 4.500 Kg |
Advantages
- Medium Quality Chassis Structure and Mechanical Components
- Compact Machine Table
- Domestic Machining Engine
- High Resolution Servo Motors

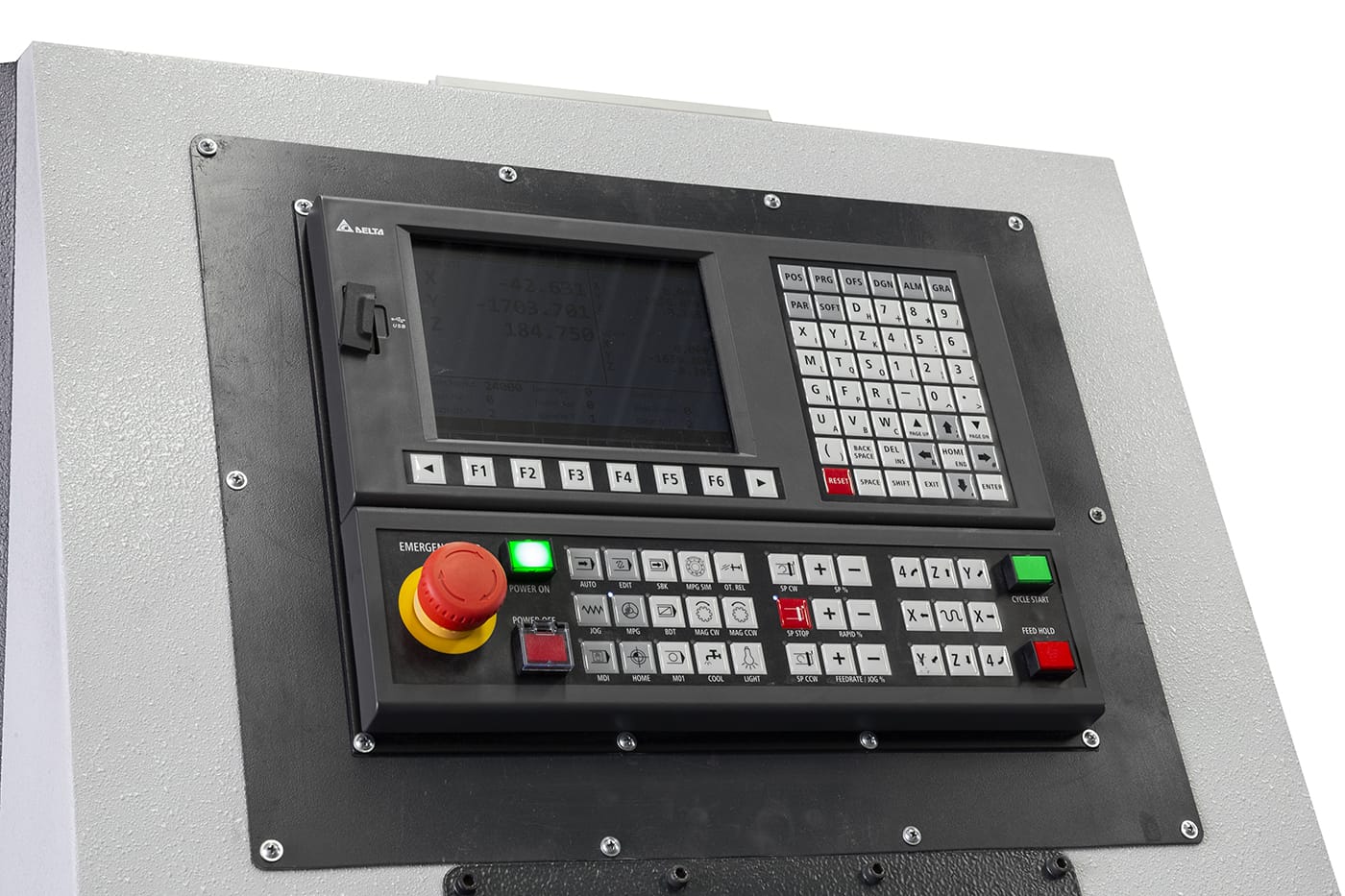

- Delta CNC Control Unit
- BlowerTip Vacuum Pump
Characteristics
Solton is a CNC machine that we produce and is suitable for daily use. Solton series can be preferred by users with a daily production capacity of 8-10 hours.
Scope Of Applıcatıon
MDF processing, Wood processing
