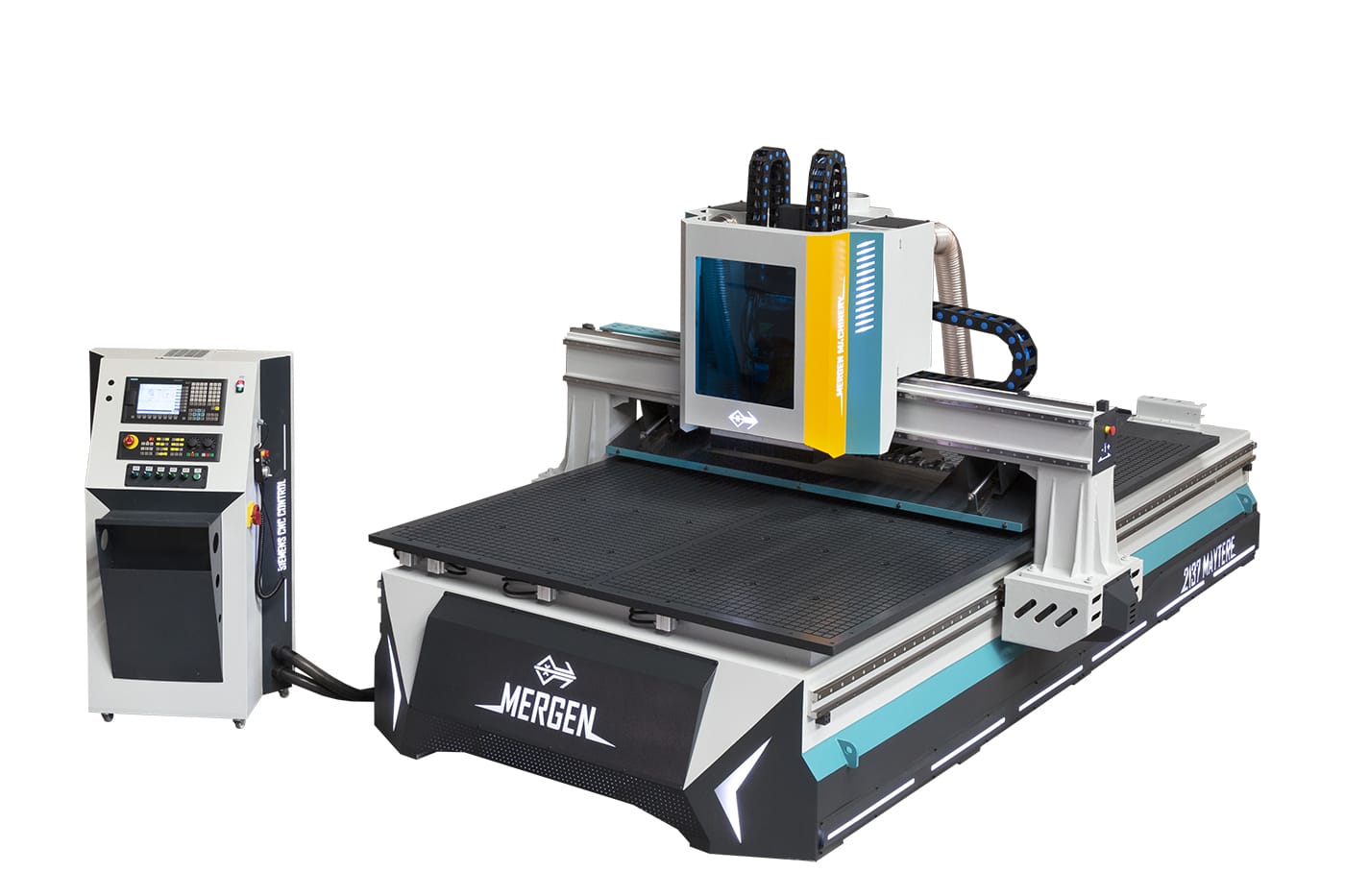

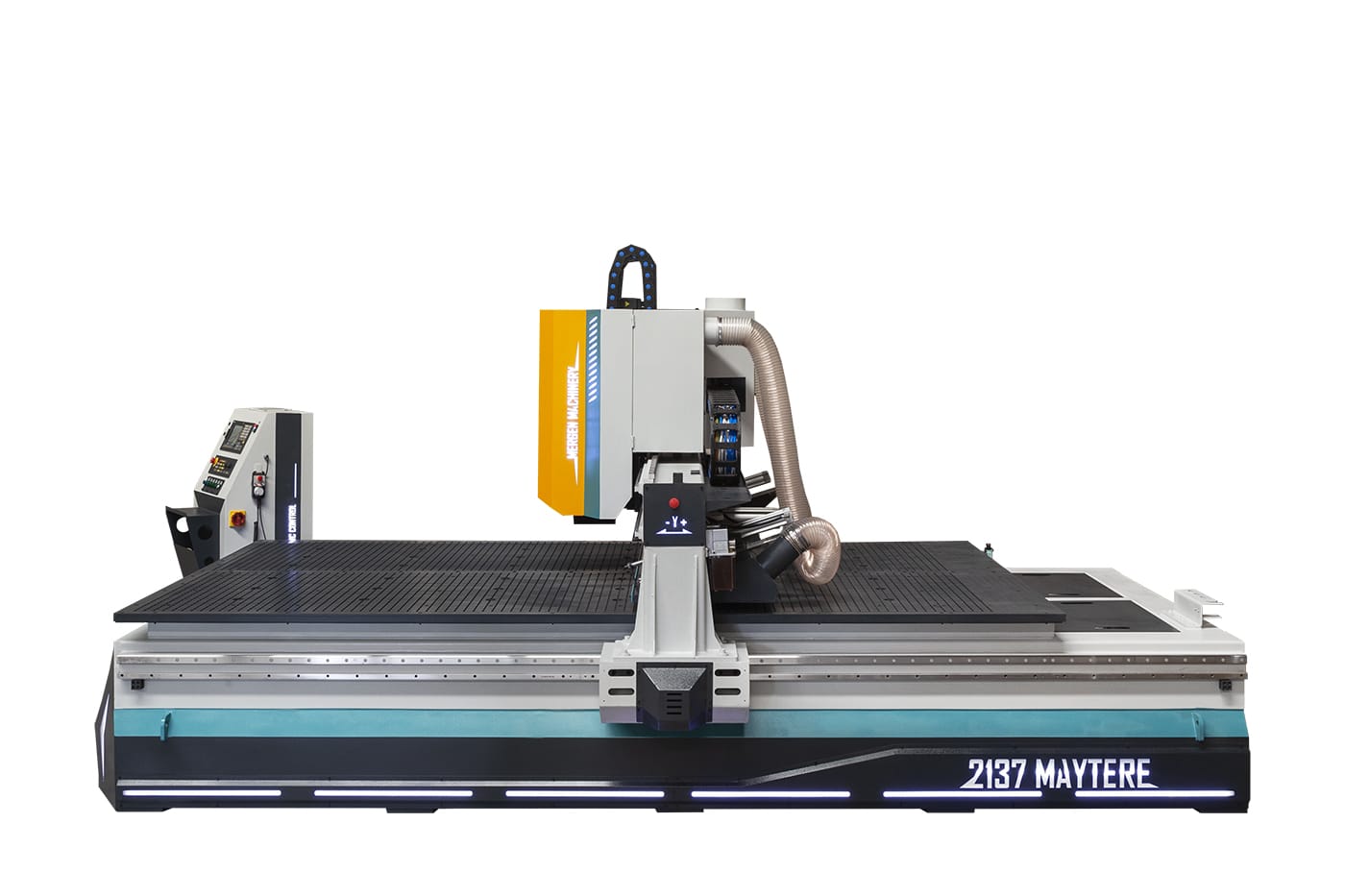

2137 MAYTERE
Technical Specifications
| TABLE DIMENSIONS : 2100 X 3660 Z:300 |
| TABLE MATERIAL : COMPACT / GENTAŞ |

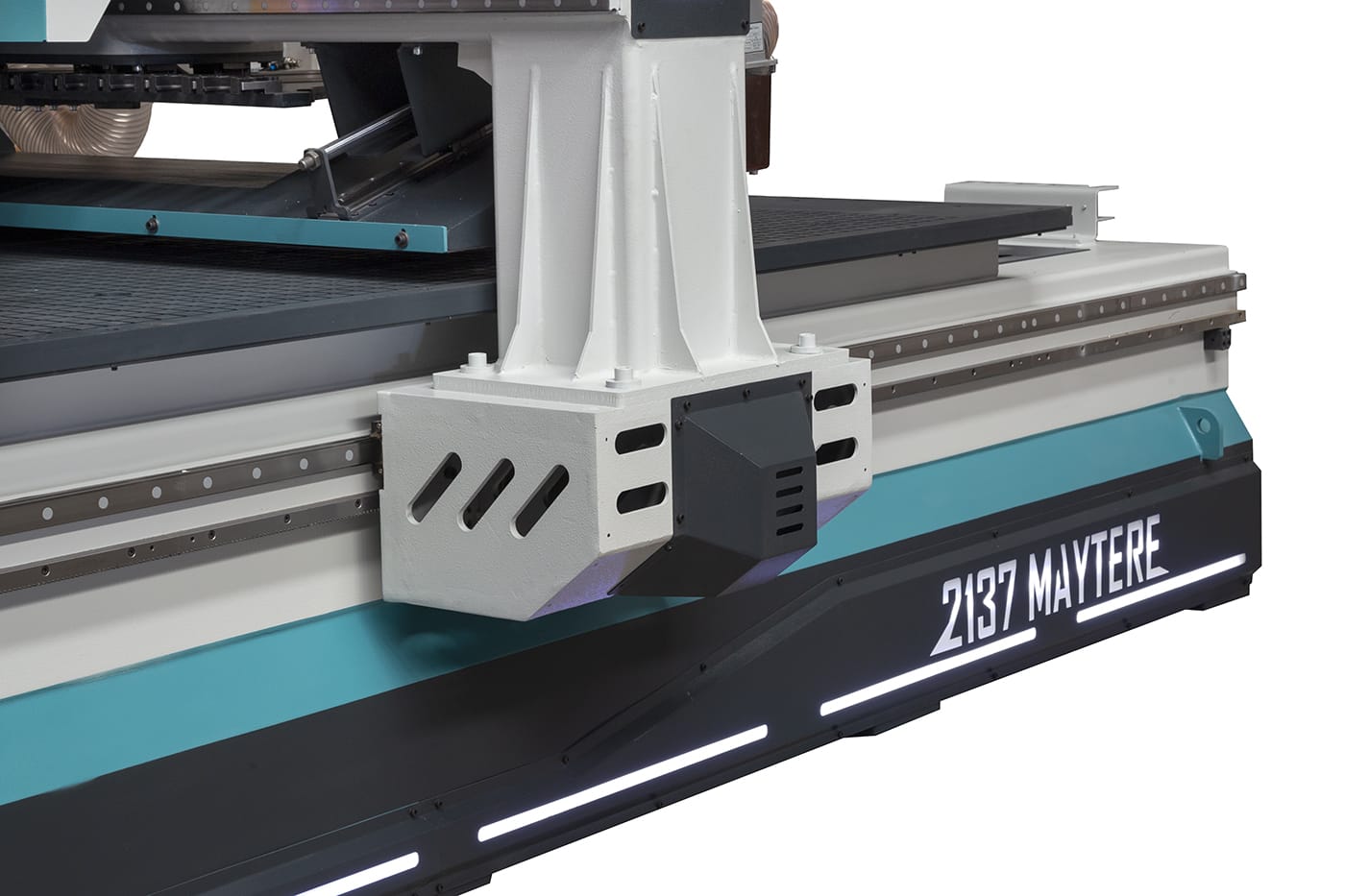

| RACK&PINION SYSTEM : 25X25XMOD2 HEL., HARD., GRINDED / BRL |
| GUIDE & BEARING : Y 35 X 25 Z 25 / STAF |
| COUPLING : SPRING TYPE / GTEN |
| SCREW : 32X05 / GTEN |
| MITER SYSTEM : AUTOMATIC / PEMAKS |
| VACUUM SECTIONS : 5 SECTION – AUTOMATIC / HIMMEL |
| VACUUM PUMP : 250 m3 /Hour DRY PUMP - EUROVAC |

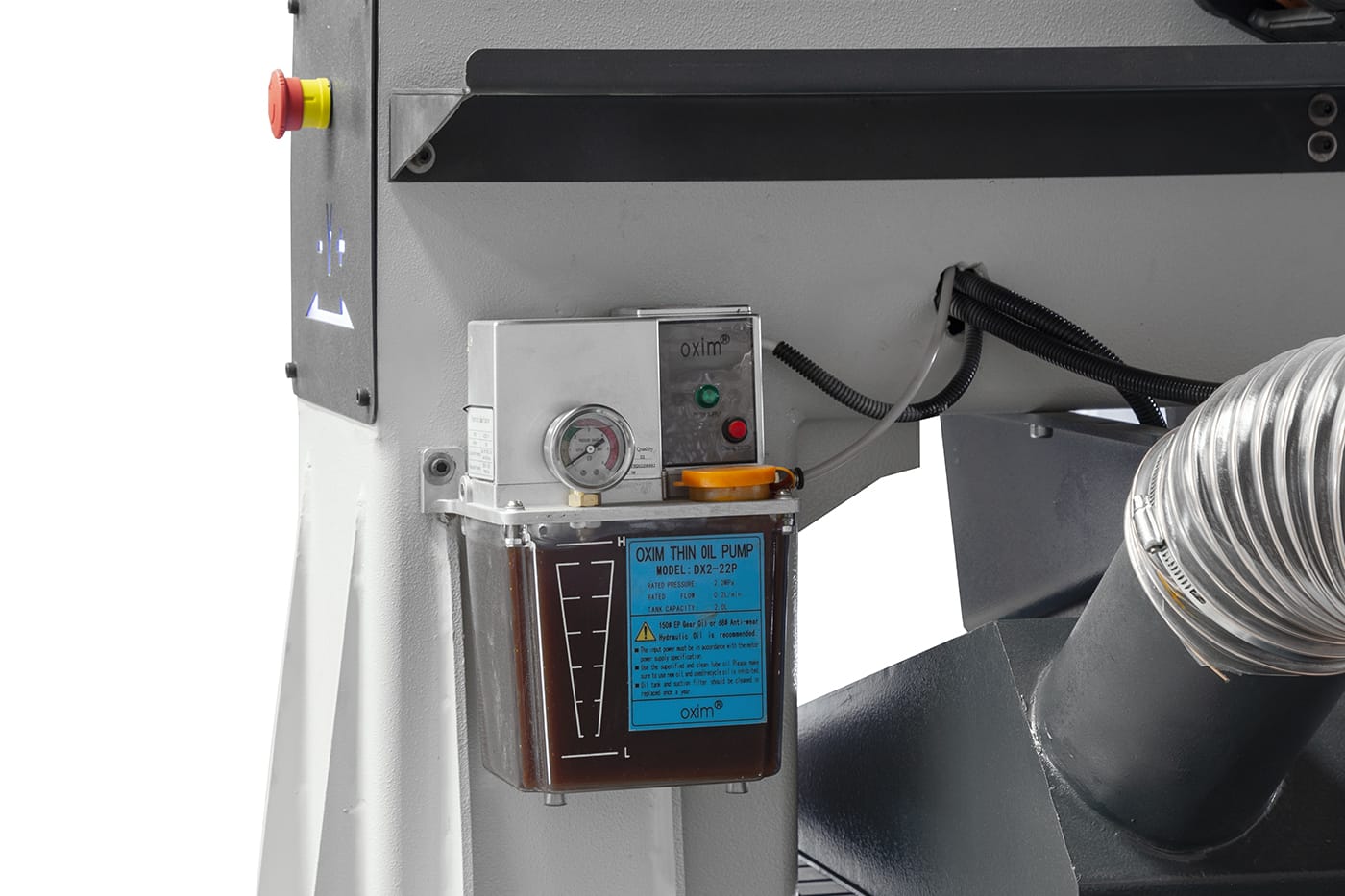

| LUBRICATION SYSTEM : AUTOMATIC LUBRICATION 17 POINTS / KEYLUBE |
| REDUCERS = FE120 R:1/10 / LIMING |

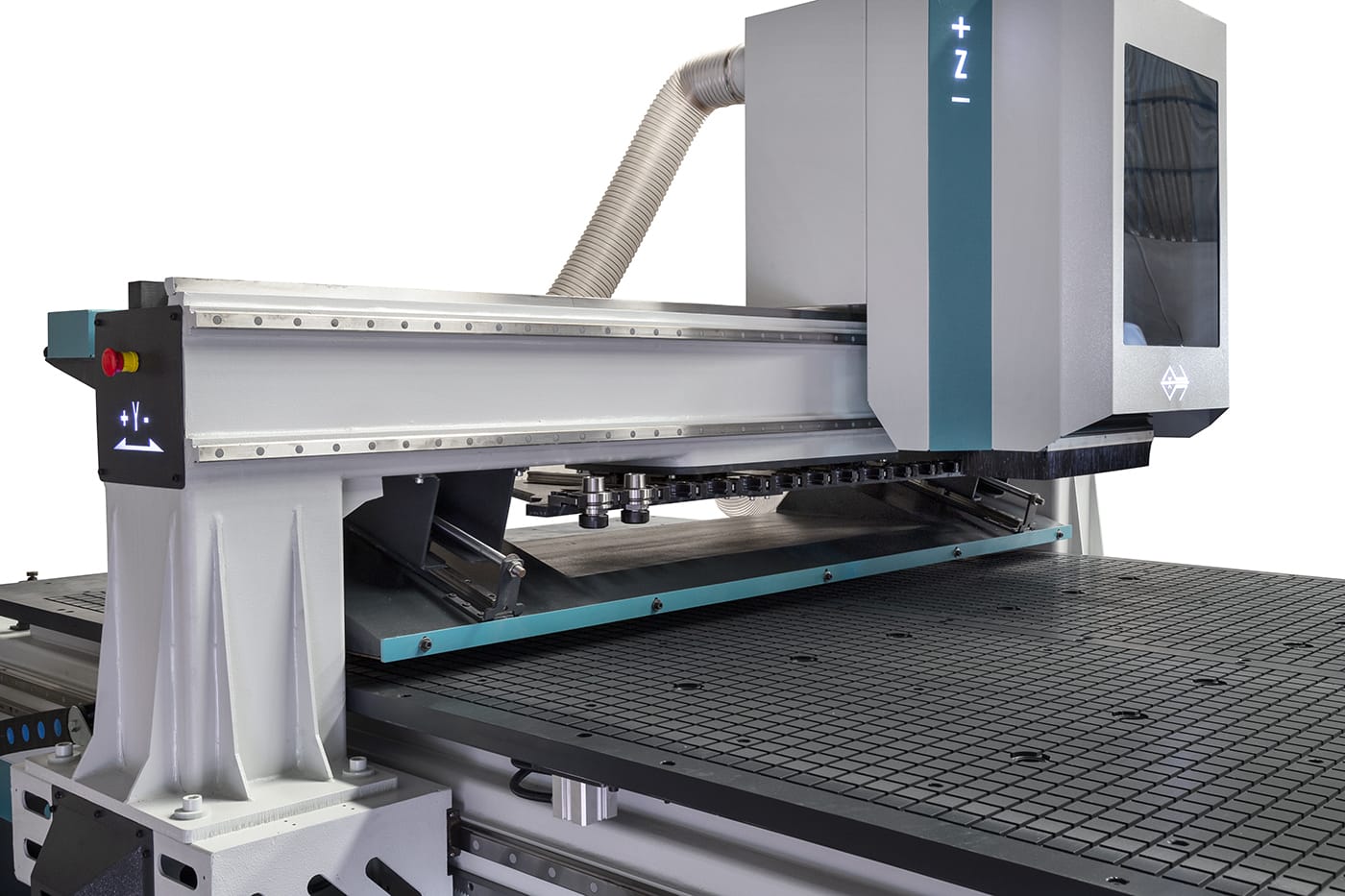

| TOOL CHANGER : AUTOMATIC / 14 / UNDER BRIDGE |
| TOOL OFSET : AUTOMATIC / TELEMECANIQUE |
| SPINDLE MOTOR : 11 kW 24.000 RPM / HITECO |
| CNC CONTROL UNIT : INDUSTRIAL 808 D / SIEMENS |
| SERVO MOTORS : 1.5 kW 2000 RPM / SIEMENS |
Machine Information
| INSTALLATION DIMENSIONS = W/3000 L/6000 H/2300 |
| PACKAGE DIMENSIONS = W/2200 L/6000 H/2300 |
| ENERGY CONSUMPTION = 25 kW |
| AIR REQUIREMENTS = 7 Bar |
| WEIGTH = 4750 Kg |
Advantages
- Heavy Chassis Structure and Strong Mechanical Parts
- Compact Machine Table
- Durable and High Speed Processing Spindle
- High Resolution Servo Motors
- Siemens 808D Advanced CNC control Unit
- Dry Type Vacuum Pump

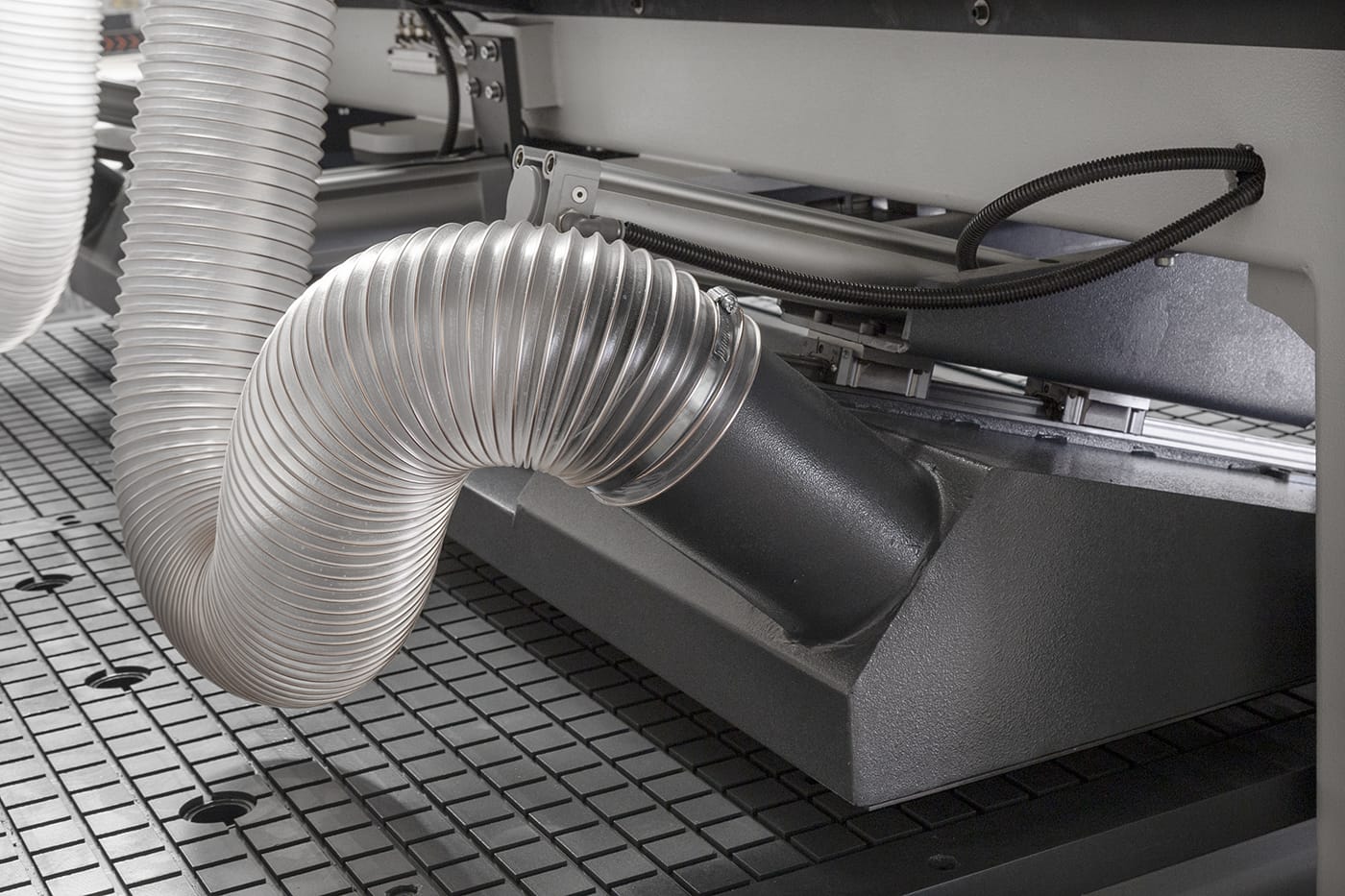

- Standard Discharge and Sweeping Unit
- Optional Drilling Unit
- Optional Aggregate Unit
- Optional Loading System
Characterıstıcs
MAYTERE is designed to meet the needs of contract manufacturing users, especially for high speed and continuous operation.
Scope Of Applıcatıon
MDF processing, Wood processing, Composite processing, Door handle-lock processing
